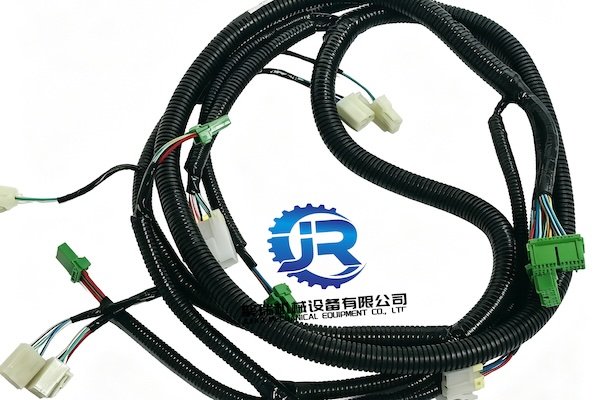

YN20M00107S002C Air conditioner wiring harness

Product Overview

The YN20M00107S002C Air Conditioner Wiring Harness is a critical electrical component for the Kobelco SK200-8 and SK210LC-8 excavators. This A/C harness connects the air conditioning compressor, condenser fan, evaporator blower, and climate control sensors to the machine’s electrical system, enabling reliable and efficient cab climate control.

The Kobelco SK200-8 and SK210LC-8 are 20-21 ton class excavators widely used in construction, excavation, and utility work . These machines feature factory-installed air conditioning systems that provide operator comfort in hot working conditions. The A/C wiring harness transmits power and control signals to all air conditioning components, ensuring proper compressor engagement, fan operation, and temperature regulation.

The A/C harness is subjected to constant vibration, heat exposure from the engine compartment, and potential moisture ingress. Over time, the harness can suffer from chafed insulation, corroded connectors, or broken wires, leading to intermittent or complete loss of air conditioning function. Common symptoms include the A/C compressor not engaging, blower fan failure, or erratic temperature control . Replacing a damaged harness with this YN20M00107S002C assembly restores proper electrical connectivity to the air conditioning system.

Key Features

• OEM Specification Compliance: Manufactured to meet the exact electrical and dimensional specifications required by Kobelco for the SK200-8 and SK210LC-8 excavators.

• Weather-Sealed Connectors: Features OEM-grade connectors that provide reliable sealing against moisture and dust ingress, maintaining electrical integrity in wet and dirty job site conditions.

• Heat and Abrasion Resistant: Wires are insulated with high-temperature, abrasion-resistant materials designed to withstand the harsh engine compartment environment.

• Direct Replacement: Matches OEM mounting dimensions and connector configurations for straightforward installation with no modifications required.

• Corrosion-Resistant Terminals: Equipped with plated terminals that resist corrosion and maintain consistent electrical conductivity.

• Essential for A/C Function: Proper electrical connectivity is essential for the air conditioning system to function reliably, keeping the operator comfortable in hot conditions.

• OEM Cross-Reference: Equivalent to OEM part number YN20M00107S002 .

Compatibility

This air conditioner wiring harness is a direct replacement for the following Kobelco excavator models:

Excavator Models

• Kobelco SK200-8

• Kobelco SK210LC-8

Additional Compatible Models (Verify Fitment)

• Kobelco 140SR

• Kobelco 70SR

• Kobelco 80CS

• Kobelco ED150, ED195-8

• Kobelco SK135SRLC-2

• Kobelco SK170-8

• Kobelco SK210D-8, SK210DLC-8

• Kobelco SK215SRLC

• Kobelco SK235SR-1E, SK235SR-2

• Kobelco SK260

• Kobelco SK295-8

• Kobelco SK350-8, SK350-9

• Kobelco SK485-8

• Kobelco SK850

Application Notes

• SK200-8: Serial Number YN11-45001~ (1/06-12/09)

• SK210LC-8: Serial Number YQ11-06001~ (1/07-12/12)

Part Number: YN20M00107S002C
OEM Reference: YN20M00107S002

Also Known As: A/C Harness, Air Conditioner Wiring Harness, Climate Control Harness, AC Compressor Harness, Cab HVAC Harness

Please verify your machine’s serial number and compare with your original part before purchasing.
