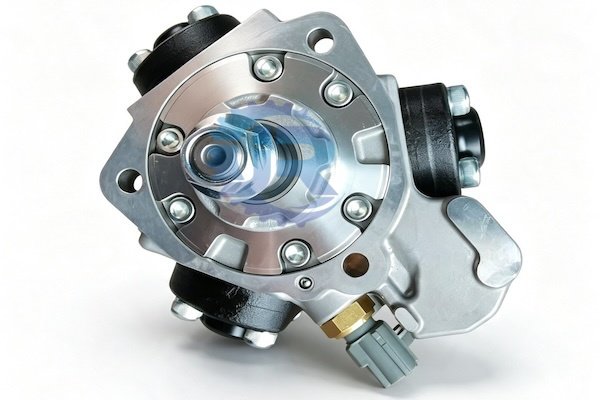

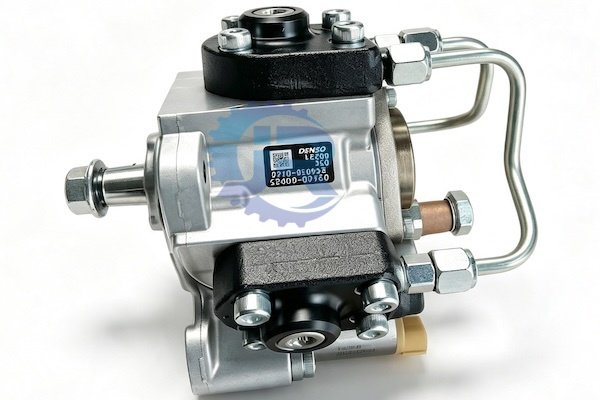

VH227301340A J08E SUPPLY PUMP

Product Overview

The VH227301340A Supply Pump is a critical fuel system component for the Kobelco SK330-8 and SK350LC-8 excavators equipped with the Hino J08E diesel engine. This high-pressure fuel pump, also known as the supply pump or fuel injection pump, pressurizes diesel fuel for delivery to the common rail system, enabling precise fuel injection for optimal combustion and engine performance .

The Kobelco SK330-8 and SK350LC-8 are 33-35 ton class large excavators powered by the Hino J08E engine, a 6-cylinder, 7.661-liter turbocharged diesel . The engine utilizes a Denso common rail fuel system, where the supply pump is responsible for generating the high fuel pressure required for efficient combustion .

The supply pump integrates several key components:

• Feed Pump: Draws fuel from the tank and feeds it to the plungers

• SCV (Suction Control Valve): A linear solenoid valve that controls the quantity of fuel supplied to the high-pressure plunger

• Plungers: Compress fuel to high pressure for delivery to the rail

When the supply pump fails due to wear, contamination, or internal damage, the engine may experience hard starting, loss of power, engine stalling, or fuel system fault codes. Replacing a faulty pump with this VH227301340A assembly restores proper fuel pressure and engine performance.

Key Features

• OEM Specification Compliance: Manufactured to meet the exact dimensional and performance specifications required by Hino for the J08E engine fuel system.

• Common Rail Technology: Designed for Denso high-pressure common rail fuel systems, delivering precise fuel pressure for optimal combustion .

• Integrated Feed Pump: Features a trochoid type feed pump integrated in the supply pump to draw fuel from the tank .

• SCV-Equipped: Includes the Suction Control Valve for precise fuel quantity regulation based on ECU signals .

• Direct Replacement: Matches OEM mounting dimensions and fuel line connections for a perfect fit with no modifications required.

• Durable Construction: Manufactured from high-strength materials to withstand the extreme pressures of the common rail system.

• Essential for Engine Performance: Proper fuel supply is critical for reliable starting, smooth operation, and maximum engine power.

Compatibility

This supply pump is a direct replacement for the following applications:

Compatible Excavator Models

• Kobelco SK330-8

• Kobelco SK350LC-8

• Kobelco SK300-8

Engine Compatibility

• Hino J08E (6-cylinder, 7.661L, turbocharged diesel)

Part Number Reference

Related Fuel System Components

Please verify your machine’s serial number and compare with your original part before purchasing.

How the J08E Supply Pump Works

Supply Pump Components

The Denso J08E supply pump consists of several integrated components :

The SCV Control Loop

The ECU controls fuel pressure through the SCV :

1. The ECU determines target rail pressure based on engine speed and load

2. The ECU controls the duty ratio of the SCV (duration of current applied)

3. When current flows to the SCV, variable electromotive force moves the armature

4. The armature changes the opening of the fuel passage, regulating fuel quantity

5. With SCV OFF, the spring fully opens the passage (full fuel intake)

6. With SCV ON, the passage closes (normally opened type)

Signs Your Supply Pump Needs Replacement

The supply pump can fail due to wear, contamination, or internal damage. Replace your VH227301340A pump if you observe:

1. Hard Starting: The engine cranks for an extended period before starting, indicating low fuel pressure.

2. Loss of Power: The engine lacks power under load, struggles to reach full RPM, or accelerates slowly.

3. Engine Stalling: The engine stalls unexpectedly, particularly under load or at idle.

4. Fuel System Fault Codes: The monitor panel displays fault codes related to fuel pressure or supply pump operation.

5. Fuel Pressure Issues: Diagnostic testing shows low fuel pressure or pressure fluctuations.

6. Contaminated Fuel: Water or debris in the fuel system may have damaged the pump.

7. Unusual Noise: Whining or knocking sounds from the fuel pump area.

8. High Operating Hours: Proactive replacement during major engine service prevents unexpected failures.

Benefits

Why choose our VH227301340A J08E Supply Pump for your Kobelco excavator?

1. Restores Engine Performance: A new supply pump restores proper fuel pressure for reliable starting, smooth operation, and full engine power.

2. Eliminates Fuel System Fault Codes: Replaces a failed pump to resolve fuel pressure-related diagnostic trouble codes.

3. Essential for Common Rail Operation: The supply pump is the heart of the common rail system, pressurizing fuel for optimal combustion .

4. Prevents Engine Stalling: A failing pump can cause engine stalling under load. Replacement restores reliable operation.

5. OEM-Quality Assurance: Manufactured to meet or exceed original equipment standards for precision and durability.

6. Improved Fuel Efficiency: Proper fuel pressure ensures optimal combustion and fuel economy.

7. Protects the Engine: Prevents fuel system issues that could lead to engine damage.

Important Installation Notes

Professional Installation Required

Supply pump replacement requires specialized knowledge, diagnostic tools, and strict cleanliness protocols. Professional installation by qualified technicians is strongly recommended.

Key Precautions

1. Clean Work Environment: The common rail system is extremely sensitive to contamination.

2. Replace High-Pressure Lines: Always replace high-pressure fuel lines with new ones when replacing the supply pump to prevent fuel leaks.

3. Update Learned Values: When replacing the supply pump, update the learned values in the engine ECU using diagnostic tools. Failure to do so may cause engine stall or excessively high common rail pressure.

4. Check for Leaks: After installation, start the engine and check for fuel leakage from around the supply pump.

5. Prime the System: Prime the fuel system according to the manufacturer’s procedure before starting the engine.

Why Choose Our VH227301340A J08E Supply Pump?

We understand that the Hino J08E engine in your Kobelco SK330-8 or SK350LC-8 excavator relies on precise fuel delivery for reliable performance. The supply pump is the heart of the common rail system, pressurizing fuel for optimal combustion and engine performance .

Our VH227301340A J08E Supply Pump is manufactured to meet OEM specifications, ensuring the correct pressure output, calibration, and fitment for your excavator. Whether you are troubleshooting hard starting, loss of power, or fuel system fault codes, this direct-fit pump provides the reliable fuel delivery your J08E engine requires.

Technical Specifications

Order your VH227301340A J08E Supply Pump today and restore reliable fuel delivery to your Kobelco SK330-8 or SK350LC-8 excavator. In stock and ready for immediate worldwide shipping. Bulk pricing available for fleet maintenance.
