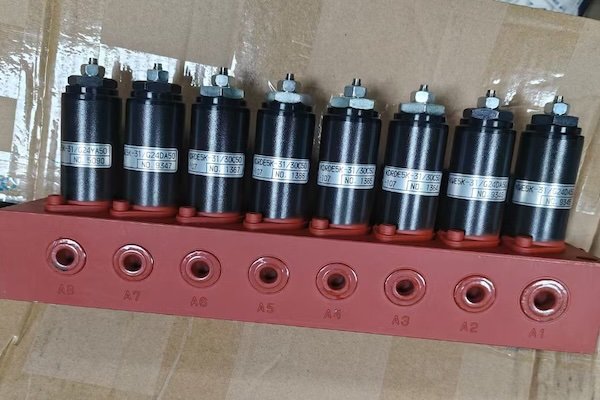

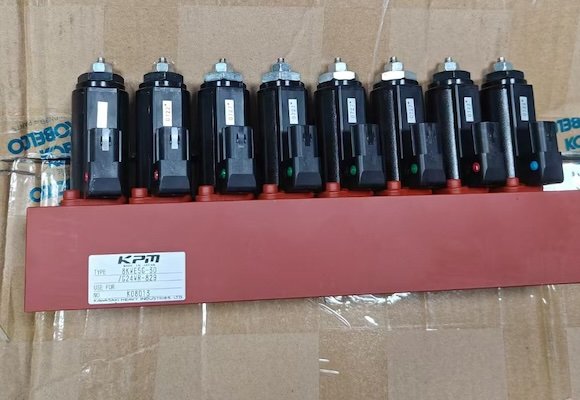

YN35V00039F1 Solenoid Valve Assy

Product Overview

The YN35V00039F1 Solenoid Valve Assy is a precision hydraulic component engineered for the Kobelco SK200-6E and SK230-6E excavators. This proportional solenoid valve, also known as an EPC (Electric Proportional Control) valve or hydraulic pump solenoid valve, is a critical component that converts electrical signals from the machine controller into precise hydraulic pilot pressure to control spool movement.

The Kobelco SK200-6E and SK230-6E are -6E series hydraulic excavators widely used in construction, excavation, and material handling applications. These machines feature sophisticated electro-hydraulic control systems that rely on proportional solenoid valves for precise implement control.

This solenoid valve is typically mounted on the main control valve or hydraulic pump regulator. It receives PWM (Pulse Width Modulation) signals from the machine ECU and proportionally adjusts pilot pressure to shift the main spools. This enables smooth, proportional control of the boom, arm, bucket, and travel functions.

When the solenoid valve fails due to coil burnout, internal contamination, or mechanical wear, the excavator may experience delayed response, jerky movement, or complete loss of specific hydraulic functions. Replacing a faulty valve with this YN35V00039F1 assembly restores proper electro-hydraulic control and machine performance.

Key Features

• Proportional Control Design: Converts variable electrical current (PWM signal) into proportional pilot pressure output for smooth spool control.

• OEM Specification Compliance: Manufactured to meet the exact electrical and hydraulic specifications required by Kobelco for -6E series excavators.

• Durable Solenoid Coil: High-quality coil designed to withstand continuous operation and resist heat degradation.

• Precision-Machined Valve Body: Hardened internal components resist wear from hydraulic oil contamination.

• Corrosion-Resistant Construction: Treated housing and connectors resist rust and corrosion from job site exposure.

• Weather-Sealed Connector: Features a sealed electrical connector that prevents moisture and dust ingress.

• Direct Replacement: Matches OEM mounting dimensions and port configurations for straightforward installation.

• Rigorously Tested: Each valve undergoes pressure and flow testing to ensure reliable performance.

Compatibility

This solenoid valve assembly is a direct replacement for the following Kobelco excavator models:

Compatible Excavator Models

• Kobelco SK200-6E

• Kobelco SK230-6E

Additional Compatible Models

• Kobelco SK200-8

• Kobelco SK230-8

• Kobelco SK250-6E

Part Number: YN35V00039F1

Also Known As: Proportional Solenoid Valve, EPC Valve, Hydraulic Pump Solenoid Valve, Pilot Control Valve, Main Control Valve Solenoid

Please verify your machine’s serial number and compare the connector type and mounting dimensions with your original part before purchasing.

How the Proportional Solenoid Valve Works

The YN35V00039F1 operates as an electro-hydraulic proportional control device:

Basic Operation

The machine controller sends a PWM electrical signal to the solenoid coil. The coil generates a magnetic field that moves the internal spool or plunger. This movement opens or closes hydraulic passages, regulating pilot pressure output to the main control valve.

Proportional Response

The output pilot pressure is directly proportional to the input current. Higher current produces higher pilot pressure, which shifts the main spool further, allowing more hydraulic flow to the attachment. This creates smooth, variable control rather than simple on/off operation.

Applications

These valves are used to control:

• Boom raise/lower speed and precision

• Arm curl and dump response

• Bucket curl and dump control

• Travel speed and direction

• Attachment flow control

Signs Your Solenoid Valve Needs Replacement

The solenoid valve can fail due to coil burnout, internal contamination, or mechanical wear. Replace your YN35V00039F1 valve if you observe:

1. Sluggish Hydraulic Response: The attachment moves slowly or hesitates when the joystick is operated, even with the engine at full RPM.

2. Jerky or Erratic Movement: The attachment moves in uneven steps or vibrates during operation rather than moving smoothly.

3. Complete Loss of Function: One or more hydraulic functions (e.g., arm out, bucket curl) do not respond at all to joystick input.

4. Intermittent Operation: The affected function works sometimes but fails at other times, indicating an intermittent electrical or mechanical issue.

5. Diagnostic Fault Codes: The machine monitor displays fault codes related to solenoid valve circuits or proportional control.

6. Visible Damage: Cracked coil housing, damaged connector, oil leaks from the valve body, or signs of overheating.

7. No Clicking Sound: When the function is activated, no audible click is heard from the solenoid valve.

8. Unusual Hydraulic Noise: Whining, chattering, or buzzing sounds from the valve area during operation.

Benefits

Why choose our YN35V00039F1 Solenoid Valve Assy for your Kobelco excavator?

1. Restores Smooth Hydraulic Control: A new proportional valve provides precise pilot pressure control, eliminating jerky or hesitant operation for better precision.

2. Eliminates Intermittent Faults: Replaces a failing valve that may work inconsistently, restoring reliable attachment response.

3. Resolves Diagnostic Codes: Clears solenoid circuit fault codes and eliminates dashboard warning lights.

4. Prevents Costly Downtime: A failed solenoid valve can shut down critical machine functions. Quick replacement gets the machine back to digging.

5. Protects the Main Control Valve: Prevents the machine from operating with erratic pilot pressures that could damage the main control valve spools.

6. Direct OEM Fit: Engineered to match the original mounting dimensions, port sizes, and electrical connector.

7. Cost-Effective Repair: Replacing an individual solenoid valve is significantly cheaper than replacing the entire main control valve section.

8. Extended Service Life: High-quality materials and precision manufacturing ensure long-lasting performance.

Technical Specifications

Installation Tips

• Professional Installation Recommended: Solenoid valve replacement requires hydraulic system knowledge and proper cleaning procedures. Professional installation is strongly recommended.

• Clean the Area: Thoroughly clean the area around the valve before removal to prevent contamination from entering the hydraulic ports.

• Relieve Hydraulic Pressure: Cycle the machine with the engine off to relieve trapped pilot pressure before removing the valve.

• Mark Electrical Connections: Note which wires connect to which terminals before disconnecting.

• Inspect the Connector: Check the wiring harness connector for corrosion, bent pins, or damage before connecting the new valve.

• Apply Thread Sealant: Use the appropriate thread sealant on the valve threads (do not use PTFE tape that could shred and contaminate the system).

• Do Not Overtighten: Tighten the valve to manufacturer specifications. Overtightening can damage the valve body or mounting threads.

• Test Operation: After installation, run the machine and test the affected hydraulic function through its full range.

• Clear Fault Codes: If the machine has stored solenoid-related fault codes, clear them using a diagnostic tool after installation.

Related Part Numbers

For reference, other solenoid valves used on Kobelco -6E series excavators include:

Why Choose Our YN35V00039F1 Solenoid Valve Assy?

We understand that Kobelco SK200-6E and SK230-6E excavators rely on precise electro-hydraulic control for efficient operation. The YN35V00039F1 solenoid valve is a critical component that directly affects hydraulic response, digging performance, and operator productivity.

A failing solenoid valve can cause frustrating performance issues that are difficult to diagnose. Our YN35V00039F1 Solenoid Valve Assy is manufactured to strict quality standards, ensuring correct electrical characteristics, precise hydraulic metering, and reliable long-term performance. Whether you are troubleshooting a sluggish attachment, erratic movement, or diagnostic fault codes, this direct-fit solenoid valve restores the precise control your Kobelco excavator needs.

Order your YN35V00039F1 Solenoid Valve Assy today and restore smooth, responsive hydraulic control to your Kobelco SK200-6E or SK230-6E excavator. In stock and ready for immediate worldwide shipping. Bulk pricing available for fleet maintenance.
