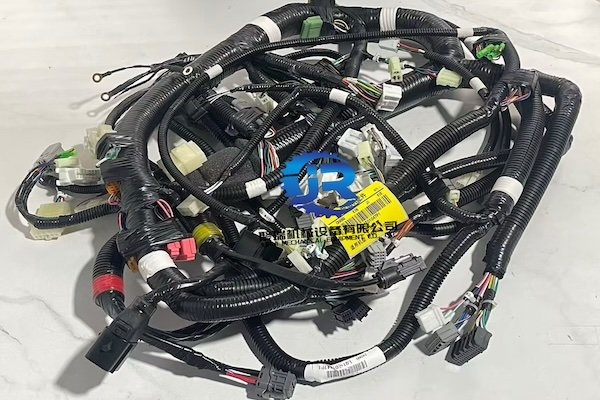

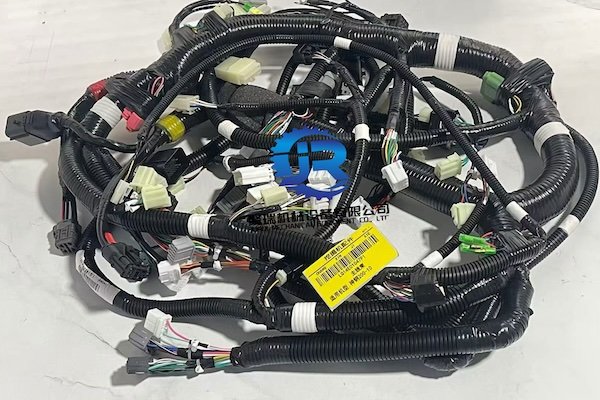

LQ14E01047P1 MAIN WIRE HARNESS

Product Overview

The main wire harness is the central electrical backbone of your Kobelco excavator. The LQ14E01047P1 Main Wire Harness is a complete main wiring harness assembly specifically designed for the Kobelco SK200-10 and SK220XD-10 excavators. This harness routes power and signals between the machine controller, engine ECU, hydraulic pump controller, monitor panel, sensors, solenoids, switches, and all other electrical components throughout the machine.

Operating in an environment of constant vibration, extreme temperature fluctuations, moisture exposure, and abrasive movement, the main harness is subject to gradual degradation over thousands of operating hours. Wires can chafe against metal edges, connectors can corrode, and insulation can become brittle, leading to intermittent electrical faults that are notoriously difficult to diagnose . Installing a new LQ14E01047P1 main harness restores full electrical integrity to your excavator, eliminating mysterious electrical issues and ensuring all machine systems communicate properly.

Key Features

• Complete Main Harness Assembly: Includes all necessary wiring, connectors, terminals, and protective conduit for a full replacement of the factory main harness.

• OEM Specification Construction: Manufactured using high-quality, cross-linked polyethylene (XLPE) insulated wire rated for the temperature extremes and vibration of heavy equipment operation.

• Precision Connector Fitment: Features OEM-grade connectors that lock securely onto the machine controller, engine ECU, hydraulic controller, monitor panel, and all other electrical components.

• Correct Wire Gauge and Color Coding: Wires are manufactured to the correct gauge (AWG sizing) and color-coded to match factory service manual schematics for simplified installation and troubleshooting.

• Original Routing Dimensions: Designed to match the factory harness length and branching layout for proper routing along the existing cable trays, through bulkheads, and away from moving or hot components.

• Protective Conduit and Wrapping: Wrapped in high-temperature loom, split conduit, or tape to protect against chafing, abrasion, and heat exposure.

• Corrosion-Resistant Terminals: Features plated terminals that resist corrosion, ensuring consistent electrical conductivity throughout the machine’s service life.

• Plug-and-Play Installation: Designed for direct replacement of the original damaged harness without the need for cutting, splicing, or soldering.

• Stringent Quality Control: Every harness undergoes continuity testing and connector fitment verification before shipment to ensure reliability.

Compatibility

This main wire harness is a direct replacement for the following Kobelco excavator models:

10-Series Models

• Kobelco SK200-10

• Kobelco SK220XD-10

Part Number: LQ14E01047P1

Also Known As: Main Harness, Main Wiring Harness, Chassis Harness, Machine Harness, Electrical Wiring Harness, Body Harness

*Please verify your machine’s serial number and current harness part number before purchasing to ensure correct fitment. The SK200-10 and SK220XD-10 are advanced 10-series excavators with sophisticated electronic control systems requiring the correct main harness specification.*

Components Connected by the Main Harness

The LQ14E01047P1 Main Wire Harness interconnects all critical electrical systems on the SK200-10 and SK220XD-10:

• Machine Main Controller (ECU)

• Engine Control Unit (Engine ECU)

• Hydraulic Pump Controller

• Monitor Panel (Display)

• Governor Motor and Throttle Position Sensor

• Fuel Injectors (through injector sub-harness)

• Various Pressure Sensors (main pump, pilot, etc.)

• Temperature Sensors (engine coolant, hydraulic oil, etc.)

• Angle Sensors (implement position sensors)

• Proportional Solenoid Valves (on main control valve)

• Stop Solenoid (fuel shut-off)

• Starter Motor and Alternator connections

• Safety Switches (seat, armrest, etc.)

• Lighting System (working lights, cab lights)

• Warning Lamps and Buzzers

• Air Conditioning System

• Travel and Swing Sensors

Signs Your Main Harness Needs Replacement

The main wire harness is subject to gradual degradation due to environmental factors and machine operation. Replace your LQ14E01047P1 main harness if you observe:

1. Intermittent Electrical Issues: The machine experiences random, unpredictable problems such as warning lights flashing, gauges fluctuating, or functions working sometimes but not others. This is the classic symptom of a failing main harness with intermittent connections.

2. Multiple Error Codes: The monitor panel displays numerous seemingly unrelated fault codes simultaneously, often indicating a common harness issue rather than multiple component failures.

3. Visible Harness Damage: Cracked, melted, frayed, or chafed wire insulation visible anywhere along the main harness routing path.

4. Corroded Connectors: Corrosion visible at multiple connector locations, particularly where the harness passes through bulkheads or low points where moisture accumulates.

5. Previous Repairs: The harness shows evidence of multiple previous repairs, splices, or taped sections, indicating degraded reliability.

6. Complete Electrical Failure: The machine experiences total loss of electrical power or no communication with the monitor panel.

7. Engine ECU Communication Errors: Diagnostic tools cannot communicate with the engine ECU or other controllers due to harness communication bus issues.

8. High Operating Hours: As a preventative measure, consider main harness replacement during major machine overhaul intervals (15,000-20,000 hours) or when other major electrical components are being replaced.

Benefits

Why choose our LQ14E01047P1 Main Wire Harness for your Kobelco SK200-10 or SK220XD-10?

1. Eliminates Mysterious Electrical Problems: A failing main harness causes random, intermittent issues that are extremely difficult to diagnose. Replacement permanently resolves these problems.

2. Restores Reliable Machine Operation: All electrical systems regain proper power and signal integrity, ensuring consistent, predictable machine behavior.

3. Clears Multiple Diagnostic Codes: Replacing a degraded harness resolves communication errors and sensor-related fault codes, eliminating false warnings.

4. Prevents Costly Downtime: Harness-related failures often cause unexpected machine shutdowns. A new harness prevents these costly interruptions.

5. Protects Electronic Components: A chafed or shorted harness can send damaging voltages to sensitive controllers. Harness replacement protects your expensive ECUs.

6. Simplifies Future Troubleshooting: A new, undamaged harness with properly color-coded wires makes future electrical diagnosis much easier for technicians.

7. Improves Machine Safety: Restores proper function of safety circuits including seat switches, armrest sensors, and emergency shutdown systems.

8. One-Time Repair: Installing a new harness addresses all harness-related issues simultaneously, avoiding repeated repairs to individual circuits.

The Importance of Harness Integrity in 10-Series Excavators

The SK200-10 and SK220XD-10 represent Kobelco’s advanced 10-series excavator line, featuring sophisticated electronic control systems that rely heavily on signal integrity. These models utilize:

• Common Rail Fuel Systems: Requiring precise injector control signals

• Electro-Hydraulic Proportional Controls: Demanding stable, noise-free signals for smooth implement operation

• CAN Bus Communication: High-speed data networks connecting multiple controllers that require proper termination and signal fidelity

• Advanced Monitor Systems: Displaying real-time machine data and diagnostic information

A degraded main harness in these advanced machines can cause seemingly random issues that frustrate operators and technicians alike. Unlike mechanical components where failure is predictable, electrical wiring issues often manifest intermittently, making them the most time-consuming and expensive problems to diagnose . Installing a new LQ14E01047P1 main harness provides a permanent solution.

Installation Tips

• Professional Installation Recommended: Main harness replacement is a complex, time-consuming procedure requiring extensive disassembly and electrical knowledge. Professional installation by qualified technicians is strongly recommended.

• Photograph the Routing: Take extensive reference photos of the original harness routing before removal, noting every cable tie location, clip position, and grommet placement.

• Tag Connectors: Use numbered tags to label each connector as it is disconnected, noting the component it serves and its approximate location.

• Route the New Harness Carefully: Follow the factory routing path exactly, keeping the harness away from hot surfaces (exhaust, turbo), moving parts (pulleys, belts, linkages), and sharp edges.

• Secure Properly: Use new cable ties and retainers at all original attachment points. Avoid overtightening ties that can pinch wires.

• Inspect Grommets and Seals: Ensure all bulkhead grommets are properly seated and sealing to prevent moisture intrusion into the cab or controller enclosure.

• Leave Service Loops: Where provided in the factory design, maintain service loops that allow for connector access and future repairs.

• Verify Connector Sealing: Ensure all connector seals are properly seated to protect against moisture and dust ingress.

• Test Before Full Assembly: Before reinstalling interior panels or covers, reconnect the battery and test all machine functions to verify proper operation.

• Use Dielectric Grease: Apply dielectric grease to connector seals (not terminals) to enhance moisture protection.

Why Choose Our LQ14E01047P1 Main Wire Harness?

We understand that the Kobelco SK200-10 and SK220XD-10 are advanced 10-series excavators that rely on perfect electrical communication between dozens of components. The main wire harness is the central nervous system of your machine, transmitting power and signals to every critical function.

Our LQ14E01047P1 Main Wire Harness is manufactured to strict quality standards using high-temperature, abrasion-resistant wire and precision-molded connectors . Every harness undergoes continuity testing and connector fitment verification before shipment to ensure reliability . Whether you are troubleshooting frustrating intermittent electrical faults, recovering from harness damage due to fire or accident, or performing a complete machine overhaul, this direct-fit main harness restores full electrical integrity to your Kobelco excavator.

Technical Specifications

Order your LQ14E01047P1 Main Wire Harness today and restore full electrical integrity to your Kobelco SK200-10 or SK220XD-10 excavator. In stock and ready for immediate worldwide shipping.
