Product Overview

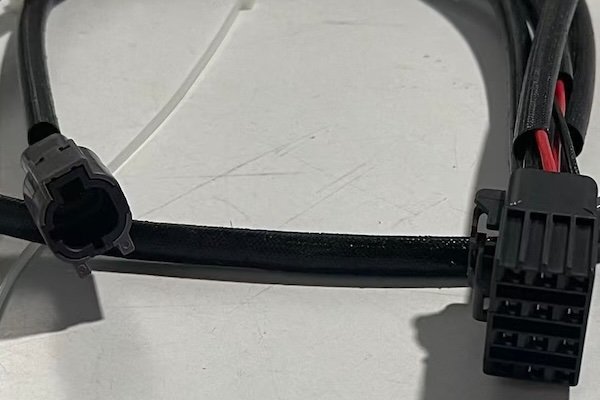

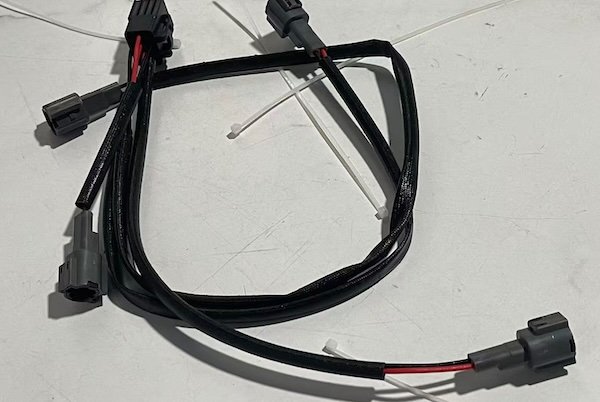

The fuel injection system on your Kobelco excavator relies on precise electrical signals to deliver the correct amount of fuel at the exact right time. The VH82051E0010A Fuel Control Wiring Harness, also known as an injector harness or engine fuel wiring harness, is the dedicated electrical conduit that carries these critical signals from the engine control unit to each individual fuel injector.
Operating in the harsh environment of the engine bay, this harness is subjected to extreme heat, constant vibration, and exposure to oil and diesel fuel. Over time, the insulation can become brittle, connectors can corrode, and wires can chafe or break, leading to intermittent or complete loss of injector function . Installing a new VH82051E0010A harness restores proper electrical integrity to the fuel system, ensuring reliable engine starting, smooth operation, and optimal fuel efficiency .
Key Features
-
OEM Specification Construction: Manufactured using high-temperature resistant wire and insulation materials to withstand the extreme heat of the diesel engine environment.
-
Direct Connector Fitment: Features precision-molded connectors that lock securely onto the fuel injectors and interface correctly with the main engine wiring harness.
-
Length and Routing Accuracy: Designed to match the original harness dimensions, allowing for proper routing along the factory cable trays and away from hot or moving engine components.
-
Corrosion-Resistant Terminals: Equipped with plated metal terminals that resist corrosion and maintain consistent electrical conductivity for reliable injector signals.
-
Comprehensive Coverage: Includes all necessary branching connectors for the J05E engine’s fuel injector system, typically covering 4 or 6 cylinders depending on the specific configuration.
-
Plug-and-Play Installation: Designed for direct replacement of the original damaged harness without the need for cutting, splicing, or soldering.
Compatibility
This fuel control wiring harness is a direct replacement for the following Kobelco excavator models:
-
Kobelco SK200-8
-
Kobelco SK210LC-8
-
Kobelco SK250-8
-
Kobelco SK260LC-8
Part Number: VH82051E0010A

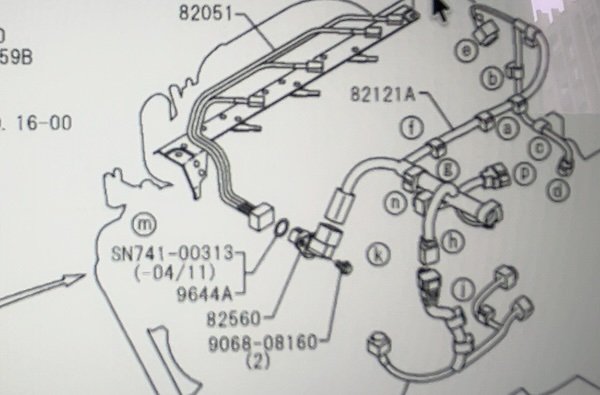

Installation Location: Engine bay, connecting ECU to fuel injectors on the J05E engine
Also Known As: Fuel Injector Harness, Injector Wiring Loom, Fuel Control Harness, Engine Fuel Harness, ECU to Injector Harness
Please verify your engine model (typically J05E for these chassis) and inspect the number of injector connectors on your existing harness before purchasing.
Signs Your Fuel Control Harness Needs Replacement
The wiring harness is subject to gradual degradation due to engine heat and vibration. Replace the VH82051E0010A harness if you observe:
-
Engine Misfire: The engine runs rough, lacks power, or sounds uneven due to one or more injectors not receiving the proper signal.
-
Intermittent Stalling or Limp Mode: The excavator loses power or stalls unexpectedly, often resetting after being turned off, indicating a short in the harness.
-
Diagnostic Trouble Codes: The monitor panel displays fault codes related to injector circuits, such as “Injector Open Circuit” or “Injector Driver Malfunction.”
-
Hard Starting: The engine takes longer than usual to start, requiring excessive cranking before it fires.
-
Visible Damage: Cracked, melted, or frayed insulation on the harness, particularly near the valve cover or hot engine surfaces.
-
Corroded Connectors: Green or white oxidation visible on the injector plug terminals.
-
Poor Fuel Economy: Increased fuel consumption due to incorrect injector timing or insufficient fuel delivery.
Benefits
-
Restores Reliable Engine Operation: A new harness ensures that every injector receives the correct electrical signal, eliminating intermittent electrical issues that are difficult to diagnose.
-
Eliminates Hard Starting and Misfires: Resolves electrical faults that prevent the engine from starting quickly or running smoothly.
-
Clears Diagnostic Fault Codes: Replacing damaged wiring is often the permanent solution to recurring injector circuit fault codes that mechanics cannot clear.
-
Protects the Engine Control Unit: A shorted or cross-wired injector harness can send damaging voltage spikes back to the ECU. Replacement prevents this costly damage.
-
Restores Fuel Efficiency: Proper injector signal timing ensures optimal fuel atomization and combustion, recovering lost fuel economy.
-
Saves Diagnostic Time: The random and intermittent nature of wiring faults is notoriously hard to trace. Direct harness replacement solves the problem quickly.
-
Built for the Environment: Constructed with heat and chemical-resistant materials to survive the harsh diesel engine bay for many operating hours.
Installation Tips
-
Disconnect the Battery: Always disconnect the negative battery terminal before working on any engine wiring to prevent shorts or electrical damage.
-
Photograph the Routing: Take reference photos of the old harness routing before removal to ensure the new harness is installed correctly, especially cable tie locations.
-
Replace One Injector at a Time: If confusion is possible, disconnect and reconnect one injector at a time to avoid mixing up the connectors.
-
Inspect Connector Seals: Ensure the rubber seals inside the injector plugs are present and undamaged to keep moisture and dirt out of the connections.
-
Use Original Routing: Route the new harness in the factory positions, keeping it clear of the exhaust manifold, turbocharger, and sharp metal edges.
-
Check for Chafing: After routing, cycle the engine throttle slightly (if possible) to check for harness tension or contact with moving parts.
-
Secure Cable Ties: Use new cable ties to secure the harness firmly to the engine, but avoid overtightening which can pinch the internal wires.
-
Clear Fault Codes: After installation, use a diagnostic tool to clear any stored injector circuit fault codes before test running the engine.
Why Choose Our VH82051E0010A Fuel Control Harness?
We understand that the HINO J05E engine in your Kobelco 8-series excavator is a precision electro-hydraulic system. The fuel control wiring harness is not just a bundle of wires; it is a critical component that directly manages combustion.
Our VH82051E0010A Fuel Control Wiring Harness is manufactured to strict quality standards, using the correct gauge wire and high-temperature insulation to match the original. Whether you are troubleshooting a frustrating intermittent misfire or rebuilding the top end of the engine, this direct-fit harness provides the reliable electrical connection your fuel injection system demands.
Technical Specifications
Order your VH82051E0010A Fuel Control Wiring Harness today and restore reliable electrical connection to your Kobelco excavator’s fuel injectors. In stock and ready for immediate worldwide shipping. Bulk pricing available for fleet maintenance.
