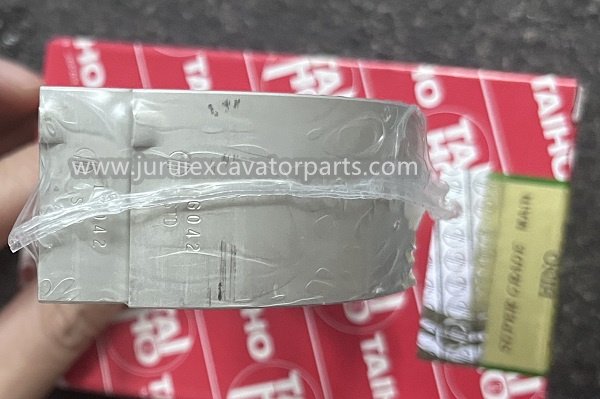

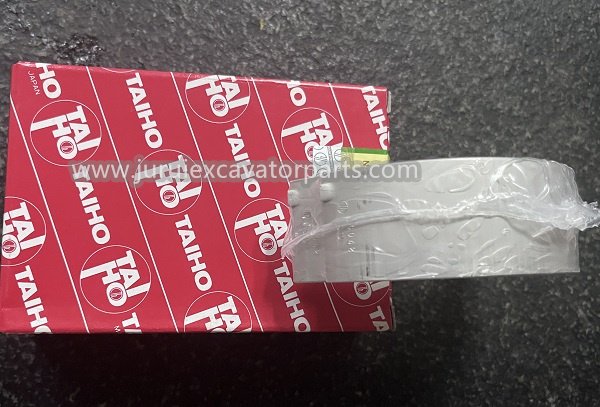

MP224H Main Bearing For J05E

The main bearings are among the most critical components inside any diesel engine. They support the crankshaft, withstand thousands of pounds of combustion pressure, and allow the crankshaft to rotate smoothly within the engine block. Introducing the MP224H J05E Engine Main Bearing, a precision-engineered replacement component specifically designed for the J05E diesel engine powering multiple Kobelco 8-series excavators including the SK200-8, SK210LC-8, SK250-8, and SK260LC-8.

The main bearing set, also known as crankshaft main bearings or engine bottom-end bearings, serves as the interface between the crankshaft and the engine block. These bearings secure the crankshaft in position while allowing it to rotate at high speeds under extreme loads. Worn or failed main bearings can lead to low oil pressure, deep knocking noises from the bottom of the engine, crankshaft damage, and complete engine seizure .

For owners and operators of Kobelco 8-series excavators, the J05E engine is the powerhouse that drives daily digging, lifting, and earthmoving operations. Proper maintenance of the engine bottom end, including regular inspection and timely replacement of main bearings during overhaul, is essential for maximizing engine life and preventing unexpected failures .

Critical Functions of the Main Bearing

The MP224H J05E Engine Main Bearing performs several essential functions within your Kobelco excavator’s J05E engine:

• Crankshaft Support: Provides precise radial support for the crankshaft, maintaining proper alignment with the connecting rods and pistons.

• Load Distribution: Evenly distributes the immense forces generated during combustion across the bearing surface, preventing localized wear and damage to the engine block and crankshaft.

• Oil Clearance Management: Maintains the precise oil clearance specified by J05E engine design, ensuring proper oil film thickness for hydrodynamic lubrication.

• Crankshaft Protection: Serves as a sacrificial wear surface, protecting the expensive crankshaft from damage. When bearing wear occurs, the bearing fails first, saving the crankshaft.

• Heat Dissipation: Helps transfer heat away from the crankshaft journals into the engine block and circulating engine oil.

• Axial Thrust Control: In addition to radial support, main bearings (particularly the thrust bearing position) control crankshaft end play, preventing excessive fore-aft movement.

Key Features

Our MP224H J05E Engine Main Bearing is manufactured to meet or exceed OEM specifications for durability and performance in heavy-duty diesel engine applications.

• J05E Engine Specific Design: Precision-engineered specifically for the Isuzu J05E diesel engine found in Kobelco SK200-8, SK210LC-8, SK250-8, and SK260LC-8 excavators.

• High-Grade Bearing Material: Constructed with premium aluminum or copper-based bearing material with a high-performance overlay, providing excellent fatigue resistance under high-load conditions.

• Precision Tolerances: Machined to exact dimensional specifications for proper oil clearance, preventing both excessive play (causing knocking) and insufficient clearance (causing bearing seizure).

• Proper Oil Grooves: Engineered with correct oil groove configurations to ensure proper lubrication flow to all bearing surfaces.

• Corrosion-Resistant Backing: The steel backing is treated to resist corrosion from engine oil and combustion byproducts.

• Complete Set Configuration: Available as a complete set including all main bearing positions plus the thrust bearing for comprehensive engine overhaul.

Compatibility

This main bearing set is a direct fit replacement for the following Kobelco excavator models powered by the J05E engine:

• Kobelco SK200-8

• Kobelco SK210LC-8

• Kobelco SK250-8

• Kobelco SK260LC-8

Engine Compatibility:

• Isuzu J05E Diesel Engine

Part Number Reference: MP224H

Also Known As: Crankshaft Main Bearing Set, Engine Bottom-End Bearings, Main Bearing Shell Set, Crankshaft Journal Bearings

*Please verify your engine model and machine serial number before purchasing to ensure correct fitment. The J05E engine is common in Kobelco’s 8-series excavator lineup .*

The Importance of Main Bearings in J05E Engine Overhaul

The J05E engine is a reliable, heavy-duty diesel powerplant used extensively in Kobelco’s 8-series excavators. When performing a major engine overhaul or bottom-end rebuild, replacing the main bearings is absolutely essential.

According to standard heavy equipment repair procedures, when disassembling an engine for overhaul, the removed bearings should be inspected for wear, scoring, and fatigue. The measured values should be recorded, and if any abnormality is detected, the bearings must be replaced .

During reassembly of the engine bottom end, proper procedures must be followed:

• New bearings should be installed with attention to correct orientation and positioning

• Precise torque specifications must be followed for main bearing cap bolts

• Oil clearance should be verified using plastigauge or precision measurement tools

• The crankshaft should be rotated after installation to verify smooth operation

Signs Your Main Bearings Need Replacement

The main bearings are subject to wear over thousands of operating hours. Replace your MP224H main bearings if you observe:

1. Deep Knocking Noise from Bottom of Engine: A low-pitched, rhythmic knocking sound that increases with engine RPM and is most noticeable under load indicates worn main bearings.

2. Low Oil Pressure Warning: Worn main bearings increase internal clearances, causing a significant drop in oil pressure, especially at idle or when the engine is hot.

3. Metal Particles in Engine Oil: Silver or bronze-colored metal flakes in the engine oil indicate bearing material wear.

4. Crankshaft End Play Issues: Excessive fore-aft movement of the crankshaft pulley indicates thrust bearing wear.

5. Engine Vibration: Excessive bearing clearance can cause crankshaft imbalance and unusual engine vibration.

6. During Engine Overhaul: When performing a complete engine rebuild or bottom-end overhaul, main bearings should always be replaced with new ones. Never reuse old bearings.

7. After Catastrophic Failure Prevention: If the engine has experienced oil starvation or overheating, main bearing replacement is mandatory.

Benefits

Why choose our MP224H J05E Engine Main Bearing for your Kobelco excavator?

1. Prevents Catastrophic Engine Failure: Failed main bearings can allow the crankshaft to contact the engine block, destroying both components. Quality bearings prevent this costly damage.

2. Restores Oil Pressure: New bearings restore proper crankshaft clearances, bringing oil pressure back to OEM specifications.

3. Extends Engine Life: Quality main bearings protect the crankshaft and engine block, allowing your J05E engine to run for thousands more hours.

4. Eliminates Bottom-End Knocking: Worn bearings produce a distinctive knocking sound. New bearings eliminate this noise and restore smooth engine operation.

5. Cost-Effective Rebuild Component: Main bearings are an inexpensive part of an engine rebuild that protect the most expensive components (crankshaft and engine block).

6. Essential for Complete Overhaul: Any comprehensive J05E engine rebuild must include new main bearings for reliable long-term operation.

7. OEM-Grade Quality Assurance: Our bearings provide the reliability and precision fit that generic bearings cannot match.

J05E Engine Applications in Kobelco Excavators

The J05E engine is the powerplant for several popular Kobelco 8-series excavator models:

• SK200-8: 20-ton class excavator, widely used in construction, utility, and general earthmoving

• SK210LC-8: Long-carriage 21-ton excavator with enhanced stability for heavy digging

• SK250-8: 25-ton class excavator for heavier applications and larger bucket capacities

• SK260LC-8: Long-carriage 26-ton excavator for demanding production environments

All these models share the same J05E engine platform, making the MP224H main bearing set a common part across the 8-series lineup .

Installation Tips

• Professional Installation Required: Main bearing replacement requires complete engine disassembly, precision measurement tools, and exact torque specifications. Professional installation by an experienced diesel mechanic is strongly recommended.

• Measure Oil Clearance: Before final assembly, measure the oil clearance using plastigauge or a micrometer to ensure proper fit. Clearance must be within J05E engine specifications.

• Inspect Crankshaft Journals: Thoroughly inspect all crankshaft main journals for scoring, taper, or out-of-round conditions. Damaged journals must be ground or the crankshaft replaced.

• Lubricate Before Assembly: Apply clean engine oil or assembly lube to the bearing surface and crankshaft journals before installation.

• Use Correct Torque: Follow J05E torque specifications for main bearing cap bolts. Under-torquing can cause bearing spin; over-torquing can distort the bearing and engine block.

• Replace Bolts if Required: Some main bearing cap bolts are torque-to-yield and must be replaced, not reused. Check your engine service manual.

• Replace All Bearings: Always replace all main bearings as a complete set, not individually.

• Verify Crankshaft Rotation: After torquing all main caps, verify the crankshaft rotates freely by hand with no binding.

Why Choose Our MP224H J05E Engine Main Bearing?

We understand that Kobelco 8-series excavators with J05E engines are workhorses that demand reliability in the toughest conditions. The main bearing set is a critical component that determines the success or failure of any engine overhaul.

Our MP224H J05E Engine Main Bearing is manufactured to strict quality standards with precise dimensional tolerances and premium bearing materials. Whether you are performing a complete engine overhaul, responding to low oil pressure or knocking issues, or stocking critical spares for fleet maintenance, you can trust our main bearings to deliver the precision and durability your J05E engine requires.

Technical Specifications

Order your MP224H J05E Engine Main Bearing today and ensure your Kobelco excavator’s J05E engine bottom end is rebuilt to OEM standards. In stock and ready for immediate worldwide shipping. Bulk pricing available for engine rebuild kits and fleet maintenance.
