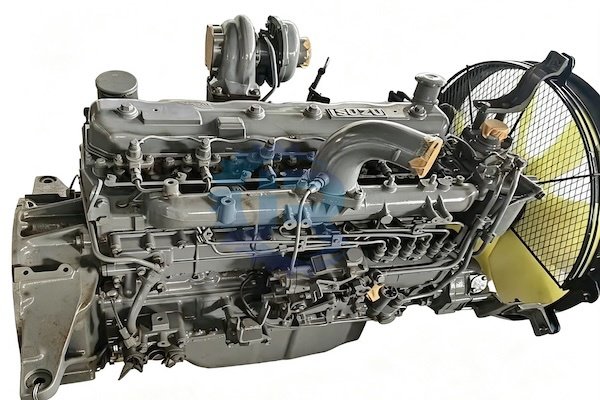

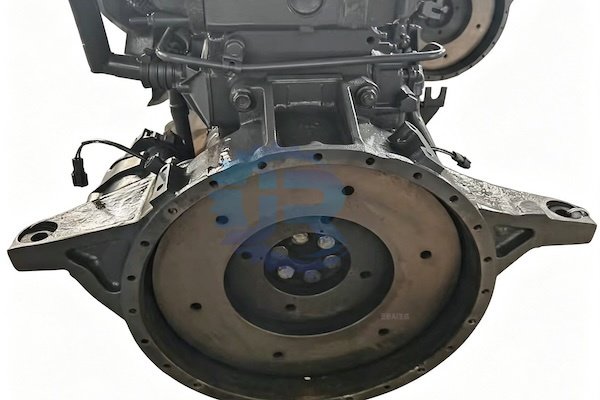

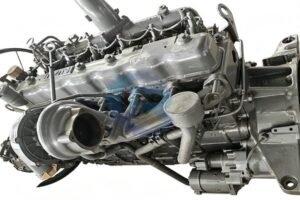

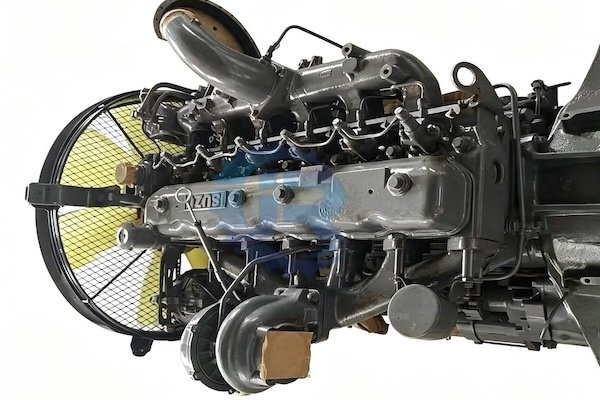

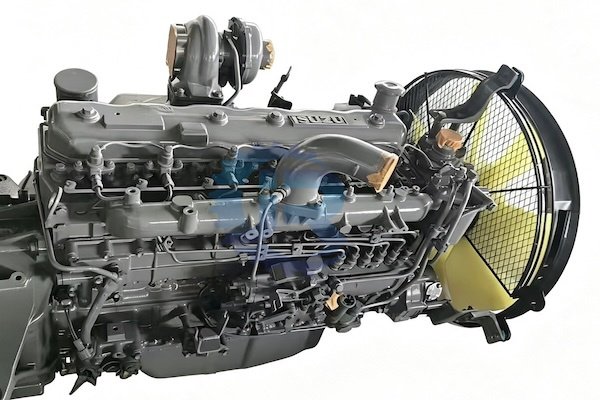

ISUZU 6BG1 Engine Assembly
High-performance ISUZU 6BG1 Engine Assembly, specifically designed for SANY SY235C, SY240C, and other 23-24 ton class medium excavators. This complete 6-cylinder, 6.5-liter turbocharged diesel engine delivers 128.5 kW (174 HP) of reliable power for demanding construction, quarrying, and excavation applications. Manufactured to meet OEM specifications for direct replacement, durable performance, and optimal fuel efficiency. Essential for engine replacement, major overhauls, and repowering projects. Fast worldwide shipping available.
Shared to
Product details
ISUZU 6BG1 Engine Assembly | Complete Diesel Engine For SANY SY235C, SY240C Excavators
Product Overview
A remanufactured engine is more than a simple rebuild or used replacement—it is an industrial process that restores a previously used engine to performance standards that meet or exceed original specifications, often through factory-grade processes and rigorous testing. At its core, it is the closest alternative to a brand-new engine, typically at a fraction of the cost and with significantly reduced environmental impact.
The Isuzu 6BG1 remanufactured engine is rebuilt using a comprehensive process:
-
Core Preparation: Old units are stripped, inspected, and measured against OEM specifications
-
Component Machining: Critical parts (liners, bearings, journals) are machined or replaced
-
Sealing and Wear Parts Replaced: All gaskets, seals, pistons, and rings are renewed
-
Testing: Dynamometer testing ensures power, torque, and emissions meet factory levels
Compatibility
This remanufactured Isuzu 6BG1 engine is specifically designed for the following SANY excavator models:
-
SANY SY235C (23-23.5 ton class)
-
SANY SY240C (24.2 ton class)
-
SANY SY235CPRO
Technical Specifications
Based on Isuzu 6BG1 factory specifications and SANY OEM matching data:
| Specification | Detail |
|---|---|
| Engine Model | ISUZU 6BG1 / CC-6BG1TRP |
| Configuration | Inline 6-Cylinder |
| Cycle | 4-Stroke Diesel |
| Displacement | 6.494 L |
| Rated Power | 128.5 kW (174 HP) @ 2,100 rpm |
| Maximum Torque | Approx. 610-679 N·m @ 1,600 rpm |
| Aspiration | Turbocharged / Direct Injection |
| Cooling System | Water-Cooled |
| Fuel System | Mechanical Direct Injection |
Key Features of Remanufactured Units
-
100% Power Tested: Performance verified on a dyno to ensure output meets standards
-
OEM Grade Wear Parts: All replacement internal components meet factory tolerances
-
Cost Efficient: Typically 30-50% lower cost than a new replacement engine
-
Performance Comparable to New: In one certified China case, remanufactured engines matched the OEM power (276 kW) and fuel economy (189g/kW·h) of new units while achieving a longer service life (10,500+ hours vs. 10,000 hours)
-
Eco-Friendly: Supports resource conservation by reducing material and energy use
Signs It’s Time to Repower
Consider replacing your SANY excavator’s 6BG1 with a remanufactured unit if you observe:
-
Excessive Oil Consumption or Smoke: Indicates worn rings, liners, or valve seals
-
Loss of Power: Difficulty maintaining operating RPM under digging loads
-
Knocking or Bearing Noise: Internal wear in the bottom end
-
High Operating Hours: Engines past 8,000-10,000 hours typically benefit from replacement over repeated repairs
Order your Remanufactured ISUZU 6BG1 Engine Assembly today and restore full performance to your SANY excavator at a fraction of the cost of new. In stock and ready for immediate worldwide shipping. Contact us for pricing, core return programs, and custom configurations.
Need help confirming compatibility?
Please contact our expert parts team at [ +8613427020740 ] or [ zmimi917@gmail.com ]. We will be happy to find the right parts for you quickly.
