Product Overview

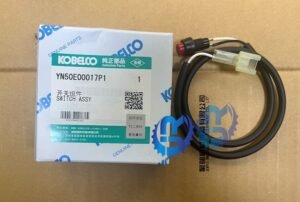

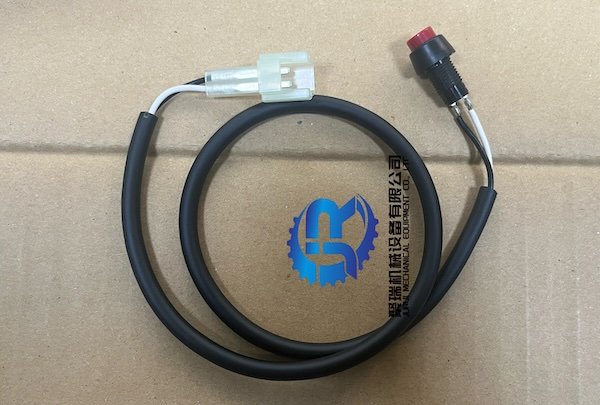

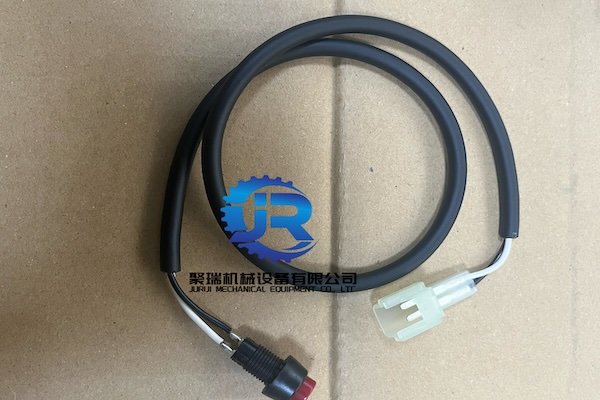

The YN50E00017P1 Switch Assy is a genuine-grade cab control switch designed for a wide range of Kobelco excavator models, including the SK220XD-10 and SK380XD-10. This robust switch assembly is engineered to withstand the demanding conditions of heavy equipment operation, providing reliable electrical control for various cab functions, including power mode selection, attachment control, and lighting.
Fitment & Compatibility
This switch assembly is compatible with a broad range of Kobelco excavator models across multiple series:
Key Applications
The YN50E00017P1 cab switch assembly is commonly used for various cab control functions:
-
Working mode selection – Switching between power (Heavy), standard, and economy modes for optimal fuel efficiency and performance
-
Attachment control – Auxiliary hydraulic circuit control for breakers, shears, or compactors
-
Lighting and beacon control – Working lights, cab lights, and warning beacons
-
Wiper/washer functions – Windshield wiper and washer activation
-
Travel speed selection – Two-speed travel control
-
Power boost activation – Provides 10% more power for additional digging capability
Product Features
✅ OEM-quality construction – Manufactured to meet or exceed original equipment specifications, ensuring proper fit and function
✅ Direct replacement – Matches OEM mounting dimensions and connector configuration; no modifications required
✅ Reliable electrical contacts – Durable internal contacts ensure consistent electrical connection
✅ 24V system compatible – Designed for the standard 24V electrical system on Kobelco excavators
✅ Smooth actuation – Engineered for positive tactile feedback for operator confidence
✅ Wide model fitment – Compatible with multiple Kobelco models across different series
✅ LED backlighting compatibility – Works with Kobelco’s LED backlit switch and dial systems
✅ 12-month warranty – Backed by a comprehensive warranty for peace of mind
Specifications
Signs Your Switch Needs Replacement
Replace your switch assembly if you observe:
-
No function response – The controlled function does not activate when the switch is operated
-
Intermittent operation – Function works sometimes but not others, indicating worn internal contacts
-
Sticking switch – Switch does not return to its normal position or is difficult to operate
-
Visible damage – Cracked housing, broken actuator, or damaged connector
-
Corrosion – Signs of moisture or corrosion on terminals or body
Installation Tips
-
Disconnect battery – Always disconnect the battery negative terminal before working on electrical components
-
Access panel – Depending on the switch location, you may need to remove a control panel or cover
-
Note wire positions – Before disconnecting, take a photo or make a sketch of wire connections
-
Release mounting clips – Most cab switches are secured with spring clips that release when pressed from the side
-
Install new switch – Snap into panel opening ensuring correct orientation; the switch should click securely into place
-
Connect wires – Connect wires to the correct terminals, verifying against your reference
-
Test operation – Reconnect battery and test the controlled function before fully securing panels
Why Choose Our YN50E00017P1 Switch Assy?
Kobelco excavators rely on reliable electrical controls for efficient operation. The cab environment experiences constant vibration, temperature fluctuations, and daily wear that can cause switches to fail. A faulty switch can cause frustrating downtime and productivity loss.
Our YN50E00017P1 Switch Assy is manufactured to OEM specifications, ensuring proper electrical characteristics, correct actuator feel, and precise fitment in the control panel. Whether you’re replacing a failed work mode switch, restoring auxiliary attachment controls, or performing preventative maintenance on your fleet, this direct-fit switch assembly provides the reliable function your Kobelco excavator requires.
Technical Specifications
