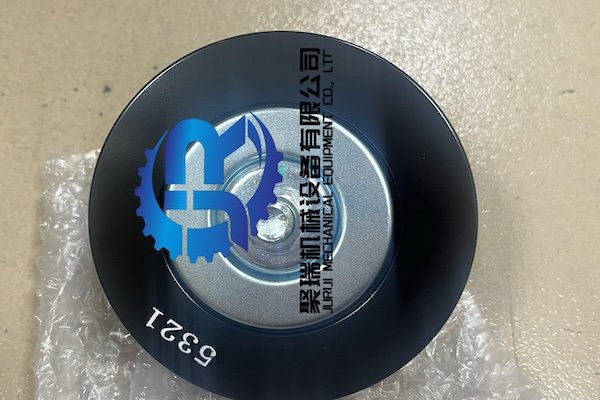

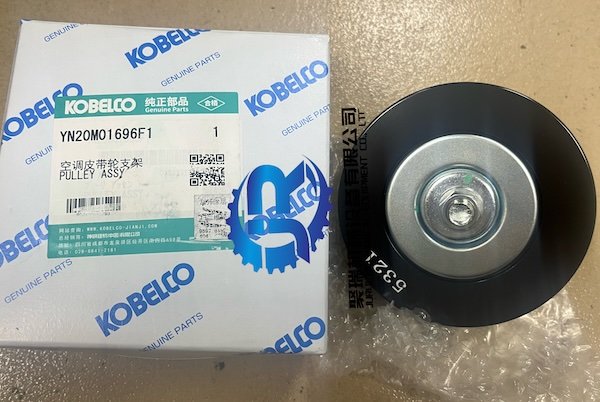

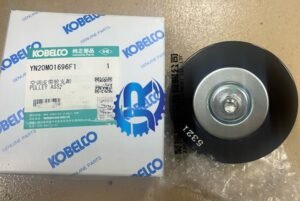

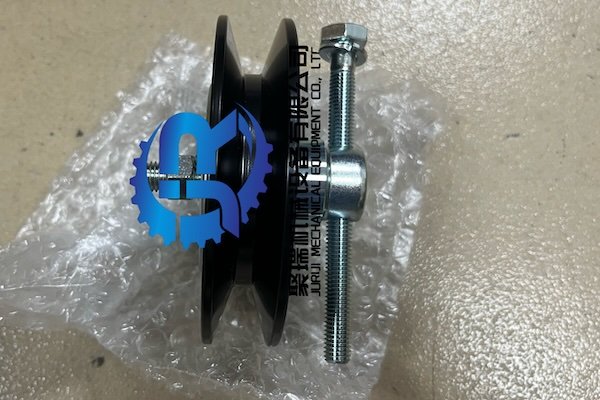

YN20M01696F1 PULLEY ASSY

Product Overview

The engine is the heart of your Kobelco excavator, and the pulley assembly is a critical component that ensures all belt-driven systems operate smoothly and efficiently. Introducing the YN20M01696F1 PULLEY ASSY, a precision-engineered engine pulley assembly designed for multiple Kobelco excavator models including the SK200-8, SK250-8, SK260LC-8, SK330-8, and SK350LC-8.

This pulley assembly, also known as an engine crankshaft pulley, vibration damper, or belt drive pulley, serves as the primary drive source for essential engine accessories. It transfers rotational power from the engine crankshaft to drive the alternator (for battery charging), cooling fan (for radiator and hydraulic oil cooling), water pump (for engine cooling), and air conditioning compressor (for operator comfort).

Critical Functions of the Pulley Assembly

The YN20M01696F1 Pulley Assembly performs several essential functions within your Kobelco’s engine system:

• Power Transfer: Transmits engine rotational power to all belt-driven accessories, ensuring they operate at the correct speeds for optimal performance .

• Vibration Damping: Many pulley assemblies incorporate a rubber vibration damper layer that absorbs torsional vibrations from the engine crankshaft, protecting the engine from harmonic damage .

• Belt Alignment: Provides precise alignment for the drive belts, preventing uneven belt wear, squealing, and premature belt failure .

• Accessory Drive Management: Ensures consistent power delivery to critical systems including the alternator, cooling fan, water pump, and air conditioning .

Key Features

Our YN20M01696F1 Pulley Assembly is manufactured to meet or exceed OEM specifications for durability and performance in heavy construction equipment.

• High-Strength Cast Construction: Manufactured from premium-grade cast iron or high-carbon steel, providing exceptional strength and resistance to fatigue under continuous heavy load conditions .

• Precision Dynamic Balancing: Factory-balanced to OEM specifications to minimize vibration, reducing stress on the engine crankshaft and extending bearing life .

• Integrated Vibration Damper: Features a high-quality rubber damping layer (where applicable) that effectively absorbs torsional vibrations, protecting the engine from harmonic damage and premature wear .

• Corrosion-Resistant Finish: Treated with a durable anti-corrosion coating to withstand exposure to engine heat, oil, moisture, and job site contaminants .

• Precision-Machined Surfaces: All belt contact surfaces and mounting interfaces are machined to exact tolerances, ensuring proper belt tracking and secure crankshaft mounting .

Compatibility

This pulley assembly is a direct OEM replacement for the following Kobelco excavator models:

• Kobelco SK200-8

• Kobelco SK250-8

• Kobelco SK260LC-8

• Kobelco SK330-8

• Kobelco SK350LC-8

• *Compatible with other Kobelco 8-series excavators equipped with the corresponding engine configuration*

OEM Reference Number: YN20M01696F1
Also Known As: Crankshaft Pulley, Engine Pulley, Vibration Damper, Belt Drive Pulley, Accessory Drive Pulley

Please verify your machine model and engine configuration before purchasing to ensure correct fitment.

Signs Your Pulley Assembly Needs Replacement

Regular inspection of the pulley assembly is critical for preventing engine damage. Replace the YN20M01696F1 if you observe:

1. Visible Cracks or Damage: Cracks in the cast metal body or visible separation of the rubber damper layer (where applicable). Any visible damage compromises structural integrity and requires immediate replacement .

2. Excessive Vibration: Unusual engine vibration, especially at specific RPM ranges, may indicate a failing vibration damper or out-of-balance pulley .

3. Belt Misalignment: If drive belts are consistently wearing unevenly, squealing, or throwing off the pulley, the pulley may be damaged or worn .

4. Rust or Corrosion: Severe rust or corrosion on pulley surfaces can cause belt damage and may indicate internal deterioration of the damper .

5. Engine Noise: Clicking, knocking, or rattling sounds from the front of the engine may indicate a loose or failing pulley assembly .

Benefits

Why choose our YN20M01696F1 Pulley Assembly for your Kobelco?

1. Protects Engine from Harmonic Damage: A properly functioning vibration damper absorbs destructive torsional vibrations that can cause crankshaft fatigue, bearing failure, and catastrophic engine damage .

2. Ensures Reliable Accessory Operation: Maintains consistent power delivery to the alternator, cooling fan, water pump, and air conditioning, preventing electrical, cooling, and comfort system failures .

3. Extends Belt Life: Precision-machined surfaces and proper alignment reduce belt wear, extending drive belt replacement intervals and preventing unexpected belt failure .

4. Prevents Costly Engine Damage: Early replacement of a failing pulley assembly prevents secondary damage to the crankshaft, front engine seals, and belt-driven components .

5. Maintains Cooling System Performance: Proper pulley operation ensures the cooling fan and water pump operate at design speeds, maintaining proper engine and hydraulic oil temperatures .

Applications on Kobelco Excavators

The YN20M01696F1 Pulley Assembly is commonly used in:

• SK200-8: Standard 20-ton class excavator with Hino or Kobelco engine configuration

• SK250-8: 25-ton class excavator for heavy-duty digging and lifting applications

• SK260LC-8: Long-carriage 26-ton excavator for stability in demanding conditions

• SK330-8: 33-ton class large excavator for mass excavation and quarry applications

• SK350LC-8: 35-ton class long-carriage excavator for heavy production environments

Installation Tips

• Professional Installation Recommended: Pulley assembly installation requires specialized tools including a harmonic damper puller/installer and a torque wrench capable of high torque values .

• Use Correct Torque: Always follow OEM torque specifications when installing the pulley retaining bolt. Under-torquing can cause loosening; over-torquing can damage the crankshaft or pulley .

• Replace the Retaining Bolt: Many manufacturers recommend replacing the crankshaft pulley retaining bolt with a new one to ensure proper clamping force .

• Inspect the Crankshaft Seal: When replacing the pulley assembly, inspect the front crankshaft oil seal for leaks and replace if necessary .

• Check Belt Condition: Inspect all drive belts and replace if worn, cracked, or glazed before installing the new pulley .

Why Choose Our YN20M01696F1 Pulley Assembly?

We understand that Kobelco 8-series excavators are workhorses that demand reliability in the toughest conditions. Our YN20M01696F1 Pulley Assembly is manufactured to strict quality standards with precision balancing, durable materials, and exact dimensional tolerances. Whether you’re performing preventative maintenance or responding to a pulley failure, you can trust our assembly to deliver the performance and durability your equipment requires.

Technical Specifications

• Part Number: YN20M01696F1

• Condition: Brand New, Aftermarket (OEM Quality)

• Material: High-Strength Cast Iron / Steel Construction with Rubber Damper (where applicable)

• Type: Engine Crankshaft Pulley Assembly / Vibration Damper

• Function: Drives alternator, cooling fan, water pump, and accessory belts

• Finish: Corrosion-Resistant Coating

• Balancing: Precision Dynamic Balanced

• Compatible Models: SK200-8, SK250-8, SK260LC-8, SK330-8, SK350LC-8

Order your YN20M01696F1 Pulley Assembly today and ensure your Kobelco excavator’s engine accessories operate reliably while protecting your engine from harmful vibrations. In stock and ready for immediate worldwide shipping. Contact us for fleet pricing and bulk orders.
