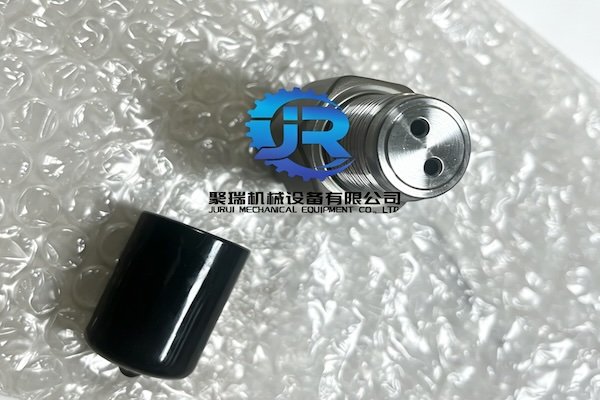

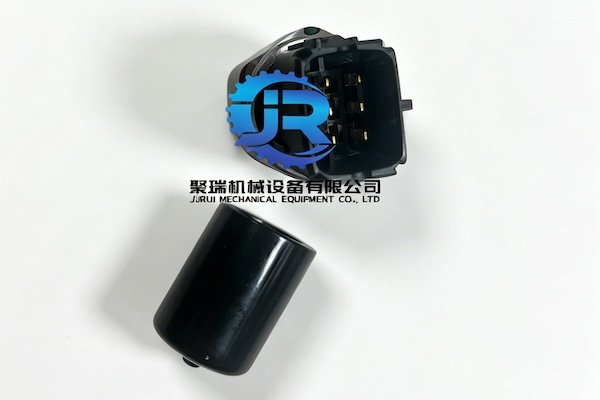

VH89458E0030 common rail press sensor

Product Overview

The VH89458E0030 Common Rail Pressure Sensor is a critical fuel system component for the Kobelco SK200-9 and SK250-9 excavators equipped with the Hino J05E diesel engine. This high-pressure sensor, also known as a fuel rail pressure sensor or common rail pressure transducer, monitors the fuel pressure within the common rail system and sends real-time data to the engine ECU for precise injection control.

The Kobelco SK200-9 and SK250-9 are 20-25 ton class excavators powered by the Hino J05E engine, a 4-cylinder, 5.123-liter turbocharged diesel with intercooler . The engine utilizes a Denso common rail fuel injection system operating at pressures up to 1,800 bar (26,000 PSI) . The common rail pressure sensor is essential for maintaining the precise fuel pressure required for optimal combustion, emissions compliance, and engine performance.

The sensor is typically mounted on the common rail itself and measures fuel pressure via a piezoresistive sensing element. It outputs an analog voltage signal to the ECU, which uses this data to regulate the suction control valve (SCV) on the fuel supply pump. When the sensor fails or provides inaccurate readings, the engine may experience hard starting, loss of power, excessive smoke, or fuel system fault codes. Replacing a faulty sensor with this VH89458E0030 component restores accurate pressure monitoring and proper fuel system function.

Key Features

• OEM Specification Compliance: Manufactured to meet the exact pressure range and electrical characteristics required by Hino for the J05E engine common rail system.

• High-Pressure Capability: Engineered to accurately measure fuel pressures up to 1,800 bar (26,000 PSI) within the common rail system.

• Precision Sensing Element: Utilizes advanced piezoresistive or strain gauge technology for accurate, real-time pressure measurement.

• Direct Replacement: Matches OEM mounting threads and connector configuration for a perfect fit with no modifications required.

• Temperature Compensated: Designed to provide stable, accurate readings across the full operating temperature range of the engine.

• Corrosion-Resistant Construction: Manufactured from materials capable of withstanding continuous exposure to diesel fuel and high-pressure operation.

• Essential for ECU Control: Provides critical pressure data for fuel injection timing and quantity control.

Compatibility

This common rail pressure sensor is a direct replacement for the following applications:

Compatible Excavator Models

• Kobelco SK200-9

• Kobelco SK250-9

Engine Compatibility

• Hino J05E (4-cylinder, 5.123L, turbocharged diesel with intercooler)

Part Number Reference

Also Known As: Common Rail Pressure Sensor, Fuel Rail Pressure Sensor, Fuel Pressure Sensor, Rail Pressure Transducer, High-Pressure Fuel Sensor

Please verify your machine’s serial number and compare with your original part before purchasing.

How the Common Rail Pressure Sensor Works

The common rail pressure sensor is a critical component of the J05E engine’s fuel system:

Operating Principle

The sensor measures the fuel pressure within the common rail using a piezoresistive sensing element. As fuel pressure changes, the sensing element deforms proportionally, generating a corresponding analog voltage signal that is sent to the engine ECU.

Fuel System Integration

The sensor works in conjunction with other fuel system components:

ECU Control Loop

1. ECU determines target rail pressure based on engine speed and load

2. Sensor measures actual rail pressure

3. ECU compares actual to target

4. ECU adjusts SCV to increase or decrease fuel supply to rail

5. Cycle repeats continuously

Signs Your Common Rail Pressure Sensor Needs Replacement

The common rail pressure sensor can fail due to internal electronic failure, contamination, or physical damage. Replace your VH89458E0030 sensor if you observe:

1. Fuel System Fault Codes: The monitor panel displays fault codes related to rail pressure sensor circuits (e.g., P0190, P0191, P0192, P0193, P0194).

2. Hard Starting: The engine cranks for an extended period before starting, indicating the ECU is not receiving accurate pressure data.

3. Loss of Power: The engine lacks power under load, struggles to reach full RPM, or enters limp mode due to incorrect pressure readings.

4. Erratic Engine Operation: The engine surges, hunts, or runs unevenly due to unstable pressure readings.

5. Excessive Smoke: Black or white smoke from the exhaust indicates improper fuel delivery due to inaccurate pressure data.

6. Engine Stalling: The engine stalls unexpectedly, particularly at idle or under load, due to sudden pressure signal loss.

7. Fuel Pressure Imbalance: Diagnostic testing shows fuel pressure readings that do not match actual system pressure.

8. Visible Sensor Damage: Cracked housing, damaged connector, or corrosion on sensor terminals.

Benefits

Why choose our VH89458E0030 Common Rail Pressure Sensor for your Kobelco SK200-9 or SK250-9?

1. Restores Proper Fuel Control: A new sensor provides accurate pressure data for the ECU to maintain optimal fuel delivery.

2. Eliminates Fuel System Fault Codes: Replaces a failed sensor to permanently resolve rail pressure-related diagnostic trouble codes.

3. Restores Engine Power: Accurate pressure control enables proper fuel delivery, restoring full engine power and response.

4. Improves Fuel Efficiency: Precise pressure regulation ensures optimal combustion and fuel economy.

5. Reduces Emissions: Proper fuel pressure control reduces smoke and emissions.

6. Prevents Engine Damage: Inaccurate pressure data can cause over-fueling or under-fueling that may damage the engine over time.

7. OEM-Quality Assurance: Manufactured to meet or exceed original equipment standards for accuracy and durability.

8. Direct Fit: Engineered for straightforward installation without modifications.

Common Fault Codes

The following diagnostic trouble codes may be associated with a failed common rail pressure sensor:

Installation Tips

• Professional Installation Recommended: Common rail fuel system service requires specialized knowledge and strict cleanliness protocols. Professional installation by qualified technicians is strongly recommended.

• Relieve Fuel Pressure: Before removing the sensor, relieve fuel system pressure according to the service manual procedure. The common rail operates at extremely high pressure.

• Clean the Area: Thoroughly clean the area around the sensor before removal to prevent contamination from entering the fuel system.

• Use Correct Torque: Follow the J05E service manual for sensor torque specifications. Over-tightening can damage the sensor or common rail.

• Inspect the Connector: Check the wiring harness connector for corrosion, bent pins, or damage before connecting the new sensor.

• Check O-Ring Seal: Ensure the new sensor’s O-ring seal is properly positioned and undamaged.

• Clear Fault Codes: After installation, use a diagnostic tool to clear any stored fuel system fault codes.

• Test Operation: Start the engine and monitor rail pressure readings using a diagnostic tool to verify proper sensor operation.

Why Choose Our VH89458E0030 Common Rail Pressure Sensor?

We understand that the Hino J05E engine in your Kobelco SK200-9 or SK250-9 excavator relies on precise fuel pressure control for reliable operation. The common rail pressure sensor is a critical component that provides essential data to the engine ECU for fuel injection control.

A failing pressure sensor can cause hard starting, loss of power, excessive smoke, and frustrating diagnostic trouble codes. Our VH89458E0030 Common Rail Pressure Sensor is manufactured to meet OEM specifications, ensuring the correct pressure range, output characteristics, and fitment for your SK200-9 or SK250-9.

Technical Specifications

Order your VH89458E0030 Common Rail Pressure Sensor today and restore accurate fuel pressure monitoring to your Kobelco SK200-9 or SK250-9 excavator. In stock and ready for immediate worldwide shipping. Bulk pricing available for fleet maintenance.
