Product Overview – Genuine Factory-Quality Hydraulic Control Valve

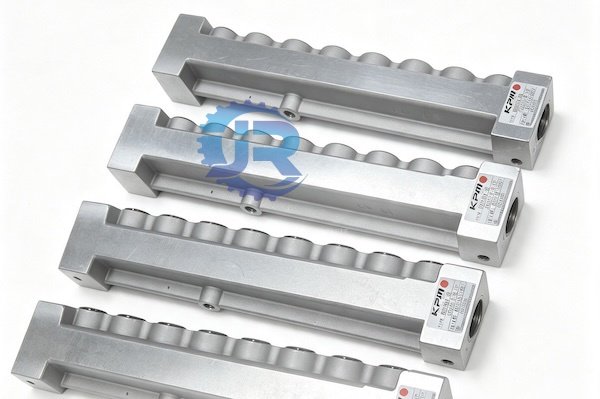

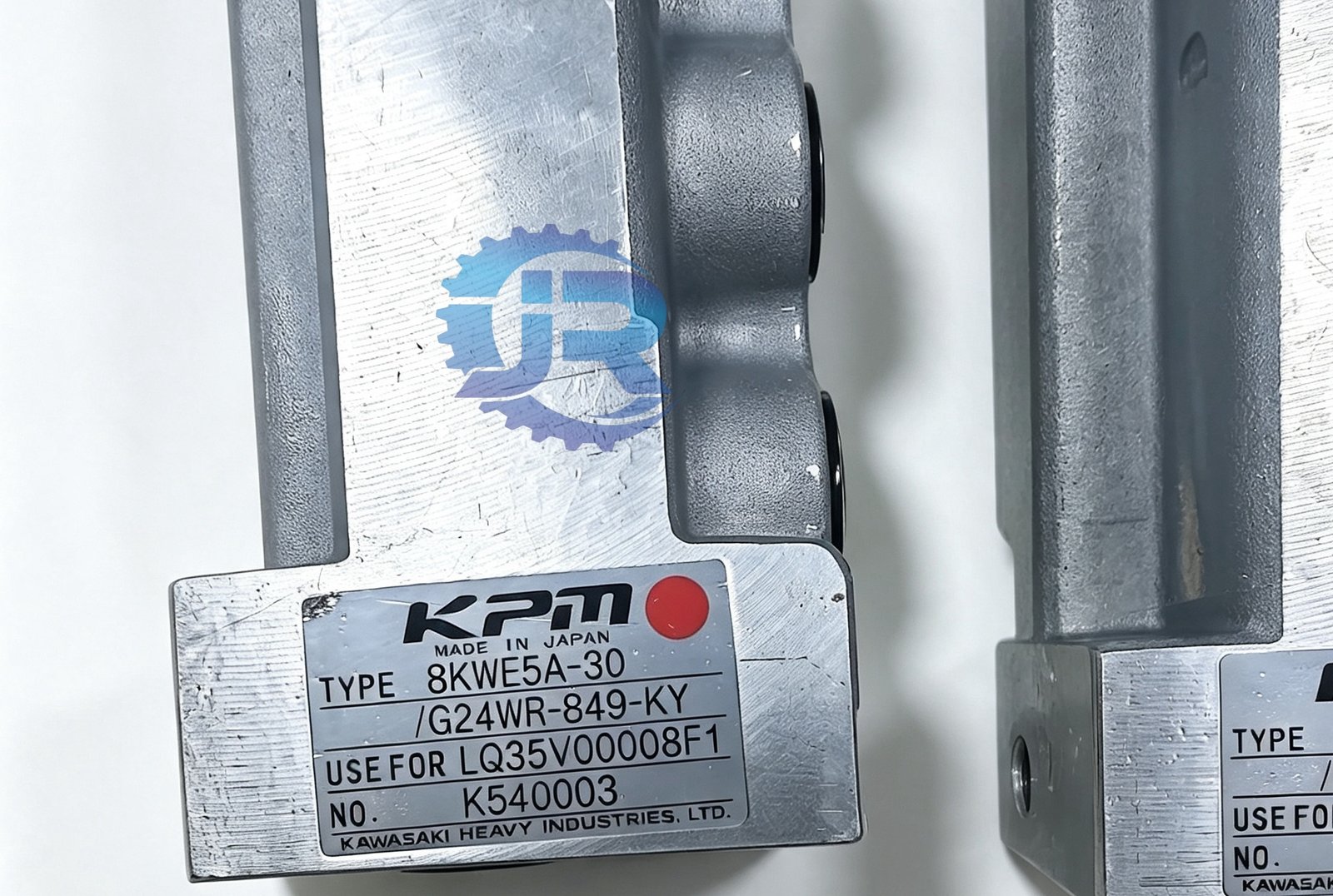

The LQ35V00008S101 Solenoid Valve Body is a factory-spec, OEM-grade hydraulic control component manufactured to the exact original equipment standards for Kobelco SK220XD-10 and SK380XD-10 excavators.

Unlike standard aftermarket alternatives, this valve body is produced using original material specifications, precision machining tolerances, and 100% factory-tested hydraulic performance to ensure seamless integration with your Kobelco hydraulic main control valve. This is not a “will-fit” part – this is a direct OEM-quality replacement engineered to restore your excavator’s hydraulic system to factory-new operating condition.

Designed for heavy-duty construction, mining, and earthmoving applications, the LQ35V00008S101 delivers reliable solenoid-actuated flow control, ensuring precise boom, arm, bucket, swing, and travel functions with zero compromise on safety or efficiency.

---

Key Features – Built to OEM Blueprint Specifications

✅ True OEM-Grade Manufacturing

• Manufactured under ISO 9001:2015 quality management systems

• Heat treatment and surface finishing per Kobelco original drawings

• 100% inspection for dimensional accuracy, porosity, and thread integrity

✅ Precision Hydraulic Performance

• Factory-calibrated flow and pressure characteristics matching OEM curves

• Low leakage rate – guaranteed within OEM tolerance bands

• Stable response time across all operating temperatures (-30°C to +70°C)

• Rated for continuous 100% duty cycle in demanding job site conditions

✅ Direct Drop-In Fitment – Zero Modifications

• Identical bolt pattern, port sizing, and mounting surface as the original part

• Compatible with existing OEM solenoid coils and DIN connectors

• No adapters, shims, or re-calibration required – install and operate immediately

✅ Extreme Durability for Harsh Environments

• Corrosion-resistant zinc-plated or passivated body finish (per OEM spec)

• High-grade NBR/FKM seals rated for mineral-based hydraulic oils

• Withstands system pressures up to 34.3 MPa (350 bar)

• Vibration-resistant construction for long service life in excavator applications

---

Technical Specifications – Factory Reference Data

---

Confirmed Machine Compatibility

This LQ35V00008S101 valve body is factory-matched for the following Kobelco excavator models:

Always verify your machine serial number to confirm exact valve bank configuration.

---

Hydraulic Functions Controlled by This Valve Body

The LQ35V00008S101 integrates into the main control valve to manage multiple critical excavator functions:

• Safety Lock Solenoid – Enables/disables all hydraulic actuator movement

• Swing Brake Solenoid – Controls swing parking brake release

• 2-Speed Travel Shifting – High/low speed selection for travel motors

• Work Device Booster Circuit – Temporary pressure boost for heavy digging

• Pump Unload (P1/P2) – Flow switching between main hydraulic pumps

• Travel Straight Solenoid – Maintains straight-line travel during simultaneous operations

• Arm 2-Speed Control – Optimizes arm cylinder cycle times

---

Why Choose Our OEM-Quality LQ35V00008S101 Over Generic Alternatives?

Bottom line: Investing in the LQ35V00008S101 OEM-quality valve body means less downtime, lower total cost of ownership, and machine performance you can rely on.

---

Installation Guidelines – For Workshop Professionals

Pre-Installation Checklist

• □

  Depressurize hydraulic system completely

• □

  Clean valve mounting surface and surrounding area

• □

  Verify new valve body matches old unit dimensionally

• □

  Prepare new seals (recommended to replace along with valve body)

• □

  Use new M5x30 class 12.9 socket head screws – torque to 8 Nm

Step-by-Step Installation

1. Disconnect battery negative terminal

2. Tag and disconnect electrical solenoid leads

3. Remove hydraulic lines connected to the valve section

4. Unbolt the old valve body from the main control bank

5. Carefully remove the old unit – inspect spool bores for debris

6. Install new LQ35V00008S101 with fresh O-rings/seals

7. Torque mounting bolts evenly in a cross-pattern to 8 Nm

8. Reconnect hydraulic lines – verify no cross-threading

9. Reconnect electrical connections (ensure IP65 seal integrity)

10. Refill hydraulic fluid if lost during replacement

11. Start machine and perform function tests at low idle – check for leaks

Post-Installation Testing

• Check all excavator functions (boom, arm, bucket, swing, travel)

• Verify 2-speed travel shifting engages correctly

• Confirm swing brake releases and engages properly

• Monitor for fault codes on the machine display panel

---

Maintenance Recommendations for Longest Service Life

• Hydraulic Cleanliness: Maintain ISO 4406 code 20/18/15 or better – contaminated oil is the #1 cause of solenoid valve failure

• Electrical Inspection: Check coil connectors for corrosion, moisture ingress, or loose terminals every 500 hours

• Visual Check: Inspect for external leakage around valve body seals during daily walk-arounds

• Fluid Change: Follow Kobelco recommended hydraulic oil change intervals (typically 1,000–2,000 hours depending on conditions)

• Coil Resistance Test: If solenoids are reused, measure coil resistance (nominal 24V DC) to ensure no internal shorts

---

Frequently Asked Questions (FAQs)

Q: Is this part a genuine Kobelco original?
A: This is an OEM-grade replacement part manufactured to the exact same specifications as the Kobelco original, using certified materials and ISO-controlled processes. It is not a low-cost aftermarket copy – it is built to factory-quality standards.

Q: Will this fit my SK220XD-10 without any modifications?
A: Yes – 100% direct bolt-on replacement. No drilling, adapter plates, or modifications required.

Q: What is the typical lifespan of this valve body?
A: With proper hydraulic maintenance and clean oil, this OEM-quality valve body typically exceeds 5,000 operating hours.

Q: Do I need to replace the solenoid coil as well?
A: Not necessarily – the LQ35V00008S101 is the valve body housing and spool assembly. The existing OEM coil can often be reused if in good condition. We recommend inspecting the coil for cracks, corrosion, or burnt odor.

Q: What is your warranty policy?
A: Full manufacturer warranty against defects in material and workmanship. Please contact our support team for detailed terms.

Q: Can you provide material certificates or test reports?
A: Yes – we can supply mill test reports and factory pressure test records upon request for bulk or commercial orders.

---

Packaging & Shipping Information

---

Recommended Companion Products

Optimize your Kobelco excavator maintenance with these related parts:

• Solenoid Coils – 24V DC, DIN 43650 connector, IP65 rated

• Valve Seal Kits – Complete O-ring and back-up ring sets

• Hydraulic Pilot Filters – Keep control circuit oil clean

• Main Hydraulic Return Filters – Extend overall system life

• ISO VG 46 Hydraulic Fluid – Factory-recommended viscosity grade

---

Order Today – Keep Your Kobelco Excavator Running at Factory Performance

Don’t settle for unreliable imitation parts that compromise your machine’s productivity and safety. The LQ35V00008S101 Solenoid Valve Body delivers original-equipment quality, precision fitment, and proven durability for your SK220XD-10 or SK380XD-10 excavator.

In stock now – ready for immediate shipment.

---

Contact our technical support team for:

• Serial number compatibility verification

• Installation guidance

• Bulk order quotations

• Expedited shipping options

---

Disclaimer: Product specifications are based on factory reference data. Always consult your Kobelco service manual for model-specific procedures. Product images are for illustration purposes – actual product may vary slightly. Kobelco® and all model designations are registered trademarks of Kobelco Construction Machinery Co., Ltd. This is a quality replacement part, not an original Kobelco-manufactured part.
