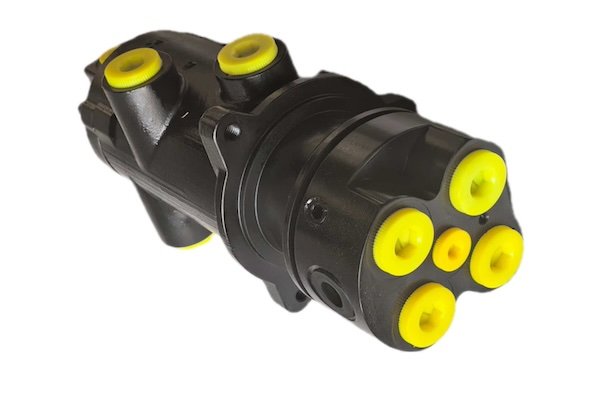

YN55V00059F1 SWIVEL JOINT

Product Overview

The Kobelco SK220XD-10 is a powerful next-generation excavator designed for demanding construction, demolition, and earthmoving applications. At the heart of its hydraulic system lies the YN55V00059F1 SWIVEL JOINT, a precision-engineered central rotary joint that enables the machine to rotate continuously while maintaining hydraulic flow to the track motors and other lower structure components.

This swivel joint, also known as a central rotary joint, hydraulic swivel, or rotary union, is mounted at the center of the excavator’s swing circle. It serves as the hydraulic connection between the upper structure pump and the undercarriage components. Without a properly functioning swivel joint, the excavator would be limited to limited rotation, making operation inefficient and dangerous.

Critical Functions of the Swivel Joint

The YN55V00059F1 Swivel Joint performs several essential functions within your Kobelco SK220XD-10:

• Continuous Rotation Enablement: Allows the upper structure to rotate 360 degrees continuously while maintaining hydraulic flow to the undercarriage, preventing hydraulic hoses from twisting and tangling.

• Hydraulic Fluid Transfer: Transfers high-pressure hydraulic oil from the upper structure’s main pump to the left and right track motors, enabling forward and reverse travel.

• Pilot Signal Transmission: Transmits pilot control signals to the travel control valves, ensuring responsive and precise track control.

• Return Oil Management: Provides a path for return oil to flow back from the undercarriage components to the hydraulic tank on the upper structure.

• Sealing Integrity: Maintains separate sealing between multiple hydraulic circuits, preventing cross-contamination and pressure loss.

Key Features

Our YN55V00059F1 Swivel Joint is manufactured to meet or exceed OEM specifications for durability and performance in heavy construction equipment.

• Precision-Machined Housing: Manufactured from high-strength cast iron or forged steel with precision-machined internal passages, ensuring smooth oil flow and minimal pressure drop.

• Multiple Independent Circuits: Engineered with the correct number of hydraulic passages for the SK220XD-10 configuration, including high-pressure supply lines, return lines, and pilot signal circuits.

• High-Quality Sealing System: Equipped with premium seals designed to withstand high pressures, temperature extremes, and continuous rotation without leaking or premature wear.

• Hardened Rotating Surfaces: Internal rotating components are surface-hardened to resist wear from continuous operation, extending service life and maintaining sealing performance.

• Corrosion-Resistant Finish: Treated with a durable anti-corrosion coating to withstand exposure to moisture, hydraulic fluid, and job site contaminants.

• Smooth Rotation Bearings: Integrated bearing system ensures smooth rotation with minimal resistance, reducing wear on the swing mechanism.

Compatibility

This swivel joint is a direct OEM replacement specifically designed for the following Kobelco excavator model:

• Kobelco SK220XD-10

OEM Reference Number: YN55V00059F1

Also Known As: Central Rotary Joint, Hydraulic Swivel, Rotary Union, Swing Joint, Center Joint

Please verify your machine model and serial number range before purchasing to ensure correct fitment.

Signs Your Swivel Joint Needs Replacement

Regular inspection of the swivel joint is critical for maintaining hydraulic system performance. Replace the YN55V00059F1 if you observe:

1. External Hydraulic Leaks: Visible hydraulic oil leaking from the center area of the machine, beneath the cab or around the swing circle. This is the most common sign of swivel joint seal failure.

2. Track Motor Performance Issues: Weak or sluggish track movement in one or both directions, especially when the upper structure is rotated to specific positions.

3. Cross-Circuit Contamination: Unusual hydraulic symptoms where operating one function affects another, indicating internal seal failure between circuits.

4. Oil Contamination: Hydraulic oil analysis showing contamination from internal seal degradation or metal particles from worn rotating surfaces.

5. Unusual Noises: Grinding, clicking, or squeaking sounds from the center of the machine during rotation, indicating bearing or surface wear.

6. During Major Hydraulic System Overhaul: When rebuilding the main hydraulic pump or replacing major hydraulic components, inspect and replace the swivel joint preventively.

Benefits

Why choose our YN55V00059F1 Swivel Joint for your Kobelco SK220XD-10?

1. Restores Proper Track Operation: A new swivel joint ensures full hydraulic flow reaches both track motors, restoring travel speed, power, and control responsiveness.

2. Eliminates Costly Leaks: Stops hydraulic oil leaks that waste expensive fluid, create environmental hazards, and pose slip and fire safety risks.

3. Prevents Cross-Circuit Issues: New seals maintain separation between hydraulic circuits, preventing erratic machine behavior and component damage.

4. Protects Hydraulic Components: Prevents contamination from seal debris or worn metal particles from circulating through the hydraulic system and damaging pumps, valves, and motors.

5. Extends Machine Life: Timely swivel joint replacement prevents secondary damage to the swing bearing, hydraulic hoses, and other connected components.

6. Reduces Downtime: Reliable swivel joint performance eliminates unexpected travel failures that would otherwise cause job site delays.

Construction and Design Features

The YN55V00059F1 Swivel Joint is engineered specifically for the demands of the SK220XD-10:

• Multiple Hydraulic Passages: Designed with the exact number of ports and passages required for the SK220XD-10 hydraulic configuration, ensuring plug-and-play installation.

• High-Pressure Capability: Rated for the maximum operating pressures of the SK220XD-10 hydraulic system, typically 3,000 to 5,000 PSI depending on the circuit.

• Temperature Resistant: Engineered to maintain sealing integrity across the full operating temperature range of the hydraulic system.

• Compact Design: Optimized dimensions to fit within the existing mounting space on the SK220XD-10 without modification.

Installation Tips

• Professional Installation Required: Swivel joint replacement is a complex procedure requiring hydraulic system knowledge and specialized tools. Professional installation is strongly recommended.

• Thorough System Cleaning: Before removing the old swivel joint, thoroughly clean the surrounding area to prevent contamination from entering hydraulic ports.

• Mark Hydraulic Lines: Clearly label all hydraulic hoses before disconnection to ensure correct reconnection to the new swivel joint.

• Replace All Seals: Even if the new swivel joint comes pre-assembled, verify all seals are in good condition and properly lubricated before installation.

• Use Correct Torque: Follow OEM torque specifications for all mounting bolts and hydraulic line fittings.

• Bleed the System: After installation, properly bleed air from the hydraulic system before operating the machine.

• Check for Leaks: After installation, run the machine and rotate the upper structure through full range while checking for leaks at all connections.

Why Choose Our YN55V00059F1 Swivel Joint?

We understand that the Kobelco SK220XD-10 is a precision machine that demands quality components to maintain its performance and reliability. Our YN55V00059F1 Swivel Joint is manufactured to strict quality standards with precision-machined passages, premium sealing systems, and durable construction materials.

Whether you are responding to a hydraulic leak, experiencing track performance issues, or performing preventative maintenance, you can trust our swivel joint to deliver the sealing integrity and hydraulic performance your SK220XD-10 requires.

Technical Specifications

• Part Number: YN55V00059F1

• Condition: Brand New, Aftermarket

• Material: High-Strength Cast Iron / Forged Steel Housing

• Type: Central Rotary Joint / Hydraulic Swivel

• Application: Kobelco SK220XD-10 Excavator

• Function: Hydraulic fluid transfer between upper structure and undercarriage

• Mounting Location: Center of swing circle, beneath cab

• Seal Material: High-pressure hydraulic grade

• Finish: Corrosion-Resistant Coating

Order your YN55V00059F1 Swivel Joint today and restore proper hydraulic flow and track performance to your Kobelco SK220XD-10 excavator. In stock and ready for immediate worldwide shipping.
