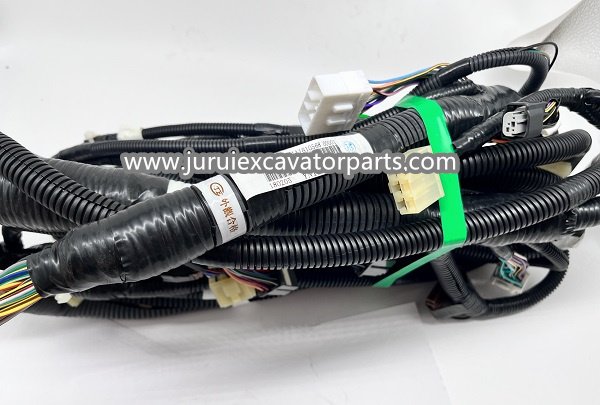

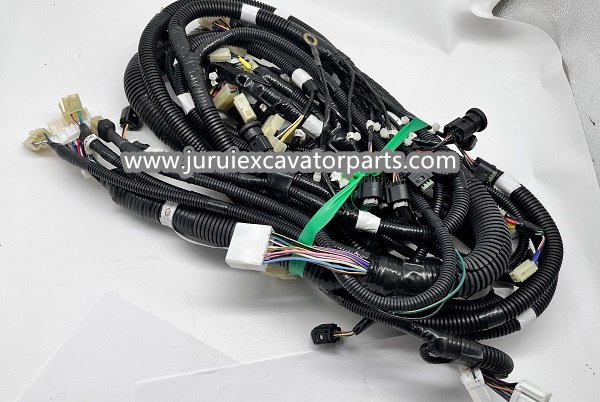

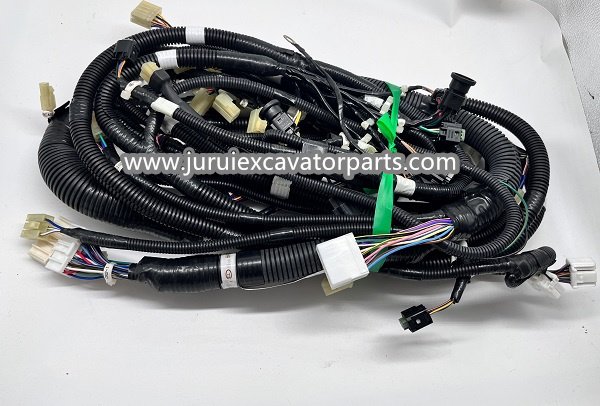

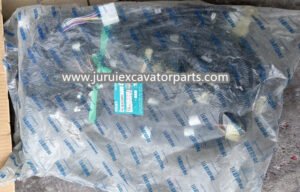

YN13E01534P3 Wire Harness For SK200-8 SK210LC-8 SK330-8 SK350LC-8  Kobelco Excavator

Restore Factory Electrical Integrity with a Complete OEM-Spec Wiring Solution

Eliminate erratic performance, sensor faults, and electrical failures with the genuine-compatible YN13E01534P3 Wire Harness. This comprehensive electrical assembly is engineered as a direct, plug-and-play replacement for your Kobelco excavator (SK200-8, SK210LC-8, SK330-8, SK350LC-8). A damaged or degraded harness can cause a myriad of issues from intermittent dashboard warnings and unresponsive controls to critical system malfunctions. Our harness restores robust, reliable electrical connectivity throughout your machine, ensuring stable operation and simplifying complex repairs.

Product Overview

The YN13E01534P3 Wire Harness is a vital nerve center, bundling the intricate network of wires that connect various sensors, switches, actuators, and control modules across your excavator. It ensures power delivery and clear signal communication for systems like engine management, hydraulics, operator controls, and monitoring displays. Manufactured to precise OEM specifications, this replacement harness features high-temperature, abrasion-resistant wiring, color-coded circuits, and exact-match connectors. It is built to withstand the harsh vibrations, temperature extremes, and environmental contaminants typical in heavy equipment operation, providing a durable, long-term solution.

Key Features & Benefits

• Precision OEM Fit & Compatibility: A direct replacement for part number YN13E01534P3, guaranteeing perfect connector alignment, correct wire routing, and seamless integration with the electrical systems of the specified Kobelco -8 Series models.

• Superior Durability & Protection: Constructed with automotive-grade wires, protective conduit or loom in high-wear areas, and sealed, corrosion-resistant connectors to prevent failures caused by moisture, dust, chafing, and vibration.

• Solve Multiple Electrical Issues at Once: Replaces a faulty harness to resolve widespread or intermittent problems—such as phantom error codes, gauge failures, or non-functional switches—saving significant diagnostic time and labor costs.

• Ensure Reliable Machine Operation: Provides stable voltage and clear communication signals, which are essential for the precise operation of electronic control units (ECUs), sensors, and safety systems, ensuring peak machine performance and safety.

• Complete & Ready-to-Install Assembly: Comes as a fully assembled unit with all necessary connectors and terminals, offering a definitive repair solution that is far more reliable than splicing individual wires.

• Prevent Future Downtime: Proactively replacing a worn harness prevents unexpected electrical shorts, open circuits, and the cascading component failures they can cause.

Technical Specifications

• Part Number: YN13E01534P3

• Application: Main or Sub Wire Harness Assembly

• Compatible Models: Kobelco SK200-8, SK210LC-8, SK330-8, SK350LC-8 Excavators

• Construction: Color-coded wiring, OEM connectors, abrasion-resistant sleeving

Frequently Asked Questions (FAQ)

Q1: What symptoms indicate I need to replace my wire harness (YN13E01534P3)?
A: Common signs include:

• Multiple, inconsistent electrical faults or error codes.

• Intermittent operation of lights, gauges, or controls.

• Components that only work when wiggling wires.

• Visible wire damage: cracked insulation, melted sections, corroded plugs, or rodent chewing.

• Electrical shorts (blown fuses) that are difficult to trace.

Q2: Is this the exact harness for my SK330-8 excavator?
A: Yes, the YN13E01534P3 Wire Harness is specifically designed to be compatible with the Kobelco SK330-8, as well as the SK200-8, SK210LC-8, and SK350LC-8 models listed. Always verify the part number from your machine or service manual.

Q3: Is professional installation required?
A: Absolutely. Replacing a main wire harness is a complex, time-consuming task that requires advanced technical knowledge. It involves disconnecting the battery, meticulously labeling or photographing connections, removing interior panels, and ensuring perfect routing. This job is highly recommended for experienced technicians only.

Q4: Why should I replace the entire harness instead of repairing the damaged wires?
A: While spot repairs can be a temporary fix, they often fail in high-vibration environments and don’t address hidden corrosion or wear elsewhere in the harness. A complete YN13E01534P3 replacement ensures the reliability and integrity of the entire electrical circuit.

Q5: Does this part come with a diagram or instructions?
A: This is an OEM-style component and typically does not include installation instructions. Proper installation requires the machine’s official electrical wiring diagram and service manual, which are essential tools for any qualified technician performing this repair.

End Electrical Gremlins and Ensure Stable Performance. Order the Definitive YN13E01534P3 Wire Harness Solution Today!
