Ensure Reliable Battery Charging and Electrical System Stability with a Direct-Fit Wiring Harness

Safeguard your excavator’s vital charging system from intermittent faults and potential failures with the genuine LC16E01035P1 Alternator Wiring Harness. This specialized wiring assembly is engineered as a direct OEM replacement for the charging circuit on Kobelco SK200-8, SK210LC-8, SK250-8, and SK260LC-8 models. A faulty or corroded alternator harness can cause undercharging, battery drain, erratic gauge readings, and even alternator damage. Restore a solid electrical connection between the alternator, battery, and monitor with this durable, plug-and-play harness.

Product Overview

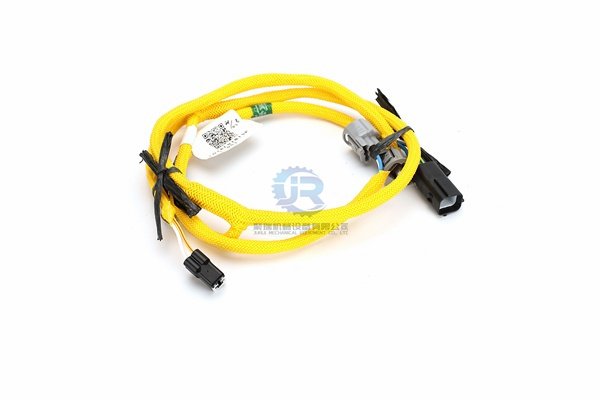

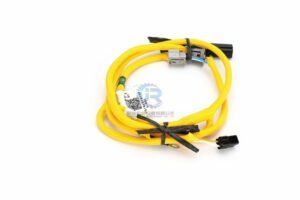

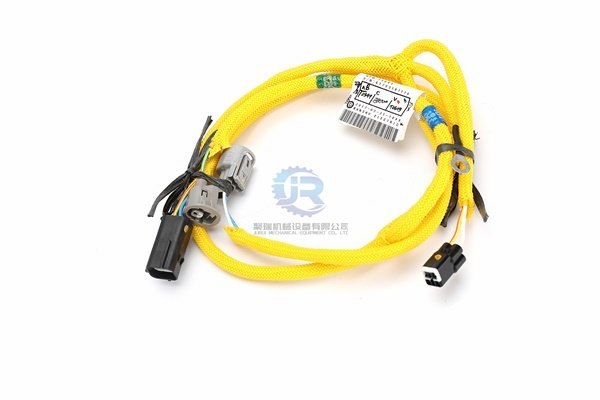

The LC16E01035P1 Alternator Wiring Harness is a dedicated sub-harness that connects the alternator to the main electrical system. It carries high-current output for battery charging, critical sensor signals (e.g., for the charging warning light and ECU), and provides excitation voltage to the alternator. Located in the harsh, high-heat environment near the engine, the original harness is susceptible to insulation cracking, terminal corrosion, and vibration damage over time. Our replacement harness is manufactured to exact OEM specifications, featuring color-coded, high-temperature-resistant wires, OEM-identical connectors, and proper protective sleeving to ensure reliable power transfer and signal integrity for years to come.

Key Features & Benefits

• Precision OEM Fit & Compatibility: A direct, plug-and-play replacement for part number LC16E01035P1, guaranteeing perfect connector fitment and correct wire routing for the alternator system on your specified J05E/J08E-powered Kobelco excavator.

• Restores Reliable Charging System Operation: Eliminates voltage drops, poor connections, and intermittent faults that cause undercharging, dead batteries, or warning light issues, ensuring your battery stays fully charged.

• Prevents Alternator Damage: Poor connections and faulty wiring can cause voltage spikes or improper excitation, leading to premature alternator failure. This harness provides the stable electrical environment the alternator requires.

• Durable, High-Temperature Construction: Wires are insulated with high-grade, heat-resistant materials, and terminals are plated to resist corrosion, ensuring longevity in the demanding engine bay environment.

• Easy Diagnosis & Installation: Replacing the entire harness is often the fastest and most reliable solution for persistent, hard-to-trace charging problems. Installation is straightforward for a technician.

• Protects Overall Electrical System Health: A stable charging voltage is fundamental to the health of all the excavator’s electronic control units (ECUs) and sensors, preventing a wide range of potential electrical gremlins.

Technical Specifications

• Part Number: LC16E01035P1

• Application: Alternator-Specific Wiring Harness / Charging Circuit Harness

• Compatible Models: Kobelco SK200-8, SK210LC-8, SK250-8, SK260LC-8 Excavators

• Compatibility: For machines with J05E/J08E engines and corresponding alternator type.

• Construction: Color-coded wires, OEM connectors, protective conduit.

Frequently Asked Questions (FAQ)

Q1: What symptoms indicate a problem with the LC16E01035P1 alternator harness?
A: Key signs include:

• Intermittent or constant battery warning light.

• Low or fluctuating battery voltage shown on the monitor.

• Undercharged battery leading to difficult starts.

• Visible damage to the harness: cracked insulation, melted spots, corroded terminals.

• Erratic alternator output even after testing the alternator itself as good.

Q2: Can I install this harness myself?
A: While it is one of the more straightforward harnesses to replace, it requires basic mechanical and electrical knowledge. Always disconnect the battery negative terminal first. You must route the harness correctly and secure all connectors firmly. If unsure, consult a technician.

Q3: Does this harness include the main alternator output terminal and plug?

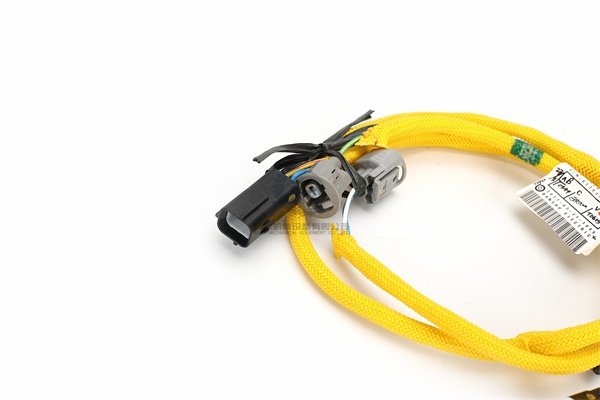

A: Yes, the LC16E01035P1 is a complete sub-harness that includes the specific multi-pin connector that plugs into the alternator, as well as the ring terminals for connection to the starter relay or battery positive, and the wire for the charge indicator lamp.

Q4: Should I replace the alternator at the same time?
A: Not necessarily. If the alternator tests as functional, replacing just the LC16E01035P1 harness may resolve the issue. However, if the alternator is old or the failure was caused by a wiring fault that may have damaged it, replacing both is a prudent, comprehensive repair.

Q5: Is this a genuine Kobelco OEM part?
A: This is a high-quality, OEM-compatible replacement harness manufactured to the exact specifications of the original LC16E01035P1 part, ensuring perfect fit and electrical performance.

Secure Your Machine’s Power Source. Eliminate Charging System Headaches – Order the LC16E01035P1 Alternator Wiring Harness Today!
