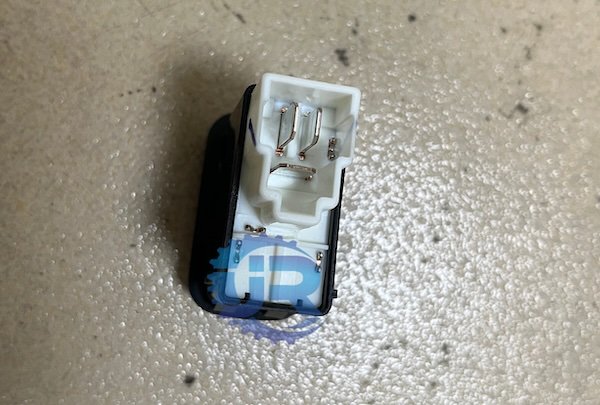

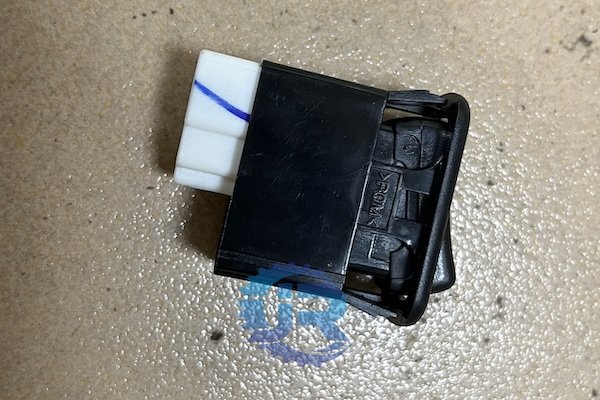

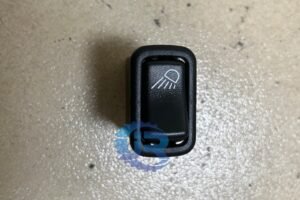

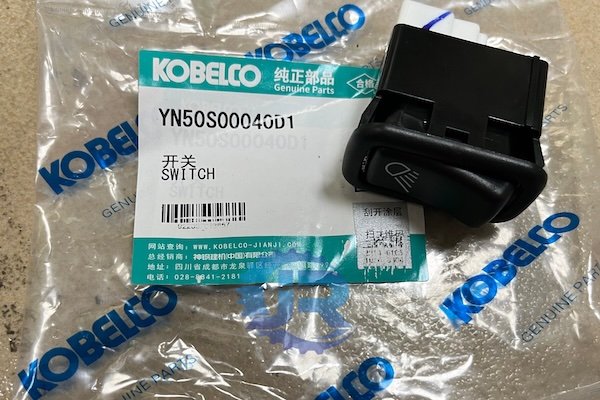

YN50S00040D1 SWITCH

Product Overview

The YN50S00040D1 Switch is a genuine electrical component engineered for Kobelco SK200-8, SK210LC-8, SK330-8, and SK350LC-8 excavators. This switch is used in the machine’s control console for selecting working modes, activating auxiliary functions, or operating other electrical circuits within the cab.

The Kobelco SK200-8 and SK210LC-8 are 20-21 ton class excavators, while the SK330-8 and SK350LC-8 are 33-35 ton class large excavators . These machines feature sophisticated electrical systems that control various functions through cab-mounted switches, providing operators with convenient control over working modes, lighting, auxiliary attachments, and other systems.

The YN50S00040D1 is part of Kobelco’s YN50S series of electrical switches. This series also includes the YN50S00026F1, YN50S00026F2, and YN50S00026F3 ignition switches used in SK200-8 excavators . The switch is typically mounted on the control panel or right-hand console for easy operator access.

When the switch fails due to internal contact wear, corrosion, or mechanical damage, the affected function may become inoperable or intermittent. Replacing a faulty switch with this YN50S00040D1 component restores proper electrical control to the operator console.

Key Features

• OEM Specification Compliance: Manufactured to meet the exact electrical and dimensional specifications required by Kobelco for 8-series excavators.

• Durable Construction: Built from high-quality materials designed to withstand the vibration, temperature extremes, and daily use of the excavator cab environment.

• Reliable Electrical Contacts: Precision internal contacts ensure consistent electrical connection for reliable function operation.

• Smooth Actuation: Engineered for positive tactile feedback and smooth operation.

• Direct Replacement: Matches OEM mounting dimensions and connector configuration for straightforward installation.

• Compatible with 24V Systems: Designed for the 24V electrical system standard on Kobelco excavators.

Compatibility

This switch is a direct replacement for the following Kobelco excavator models:

Compatible Excavator Models

• Kobelco SK200-8

• Kobelco SK210LC-8

• Kobelco SK330-8

• Kobelco SK350LC-8

Additional Compatible Models (Verify Fitment)

• SK200LC-8

• SK210-8

• SK330LC-8

• SK350LC-8

Part Number Reference

Also Known As: Switch, Rocker Switch, Push Button Switch, Control Switch, Cab Switch, Function Switch

Please verify your machine’s serial number and compare the switch style (rocker, push-button, toggle) and mounting dimensions with your original part before purchasing.

Typical Applications

Based on standard Kobelco cab configurations, switches like YN50S00040D1 are commonly used in the following applications:

Signs Your Switch Needs Replacement

The switch can fail due to wear, corrosion, or electrical damage. Replace your YN50S00040D1 switch if you observe:

1. No Function Response: The function controlled by the switch does not activate when the switch is operated.

2. Intermittent Operation: The function works sometimes but not others, indicating worn internal contacts.

3. Sticking Switch: The switch does not return to its normal position or is difficult to operate.

4. Visible Damage: Cracked housing, broken actuator, or damaged connector.

5. Corrosion: Signs of moisture or corrosion on the switch terminals or body.

6. Loose Fit: The switch moves in the panel or does not securely engage in its mounting position.

7. Fuse Blowing: The fuse for the controlled circuit blows repeatedly, potentially indicating internal shorting.

Benefits

Why choose our YN50S00040D1 Switch for your Kobelco excavator?

1. Restores Full Cab Function: A new switch ensures all cab-controlled functions operate reliably.

2. Eliminates Intermittent Issues: Replace worn internal contacts to stop unreliable switch operation.

3. Simple Replacement: The switch can be easily replaced from the control panel with basic tools.

4. OEM Fit Guarantee: Manufactured to the correct dimensions for a proper panel fit.

5. Improves Operator Experience: Positive switch action enhances operator confidence and comfort.

6. OEM-Quality Assurance: Manufactured to meet or exceed original equipment standards for durability.

Installation Tips

• Disconnect Battery: Always disconnect the battery negative terminal before working on electrical components.

• Access Panel: Depending on the switch location, you may need to remove a control panel or cover for access.

• Note Wire Positions: Before disconnecting, note which wire goes to which terminal. Take a photo or make a sketch.

• Release Mounting Clips: Most cab switches are secured with spring clips that release when pressed from the side.

• Install New Switch: Snap the new switch into the panel opening, ensuring it is correctly oriented.

• Connect Wires: Connect the wires to the correct terminals, verifying against your reference.

• Test Operation: Reconnect the battery and test the controlled function before fully securing panels.

Why Choose Our YN50S00040D1 Switch?

We understand that Kobelco 8-series excavators rely on reliable electrical controls for efficient operation. A failed switch can be a minor inconvenience or, in the case of safety functions, a critical issue.

Our YN50S00040D1 Switch is manufactured to OEM specifications, ensuring proper electrical characteristics, correct actuator feel, and precise fitment in the control panel. Whether you are replacing a worn switch, repairing a control panel, or restoring a machine after damage, this direct-fit switch provides the reliable function your Kobelco excavator requires.

Technical Specifications

Order your YN50S00040D1 Switch today and restore reliable electrical control to your Kobelco SK200-8, SK210LC-8, SK330-8, or SK350LC-8 excavator. In stock and ready for immediate worldwide shipping. Bulk pricing available for fleet maintenance.
