Product Overview

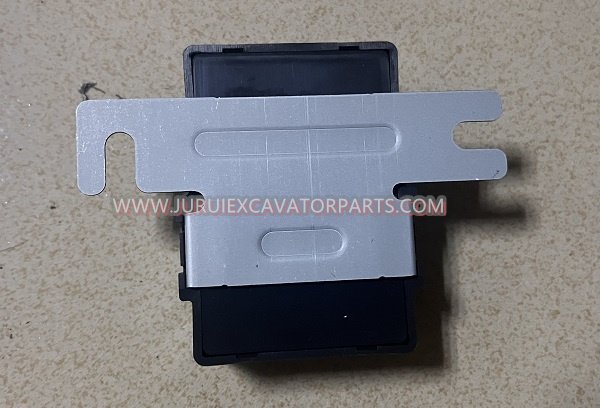

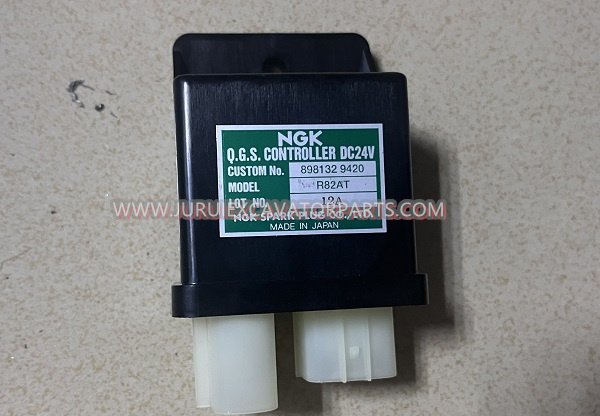

The VI8980305730 4LE2 Glow Plug Timer is a critical cold-start component for the Kobelco SK75-8 excavator equipped with the Isuzu 4LE2 diesel engine. This glow control unit, also known as a glow timer or QOS-III timer, automatically controls the preheating duration of the glow plugs to ensure reliable engine starting in cold conditions.
On diesel engines like the Isuzu 4LE2, the glow plug system is essential for raising the temperature inside the combustion chambers during cold starts. When the ignition is turned on, the glow timer energizes the glow relay, which supplies current to the glow plugs for a predetermined duration . The timer uses a thermistor to sense temperature and automatically adjust the preheating time accordingly. Once the system is energized, the glow timer turns the glow lamp on and off according to the preheating duration.
The Kobelco SK75-8 is a 7.5-ton class compact excavator used in construction, utility work, landscaping, and rental fleets. The Isuzu 4LE2 engine is known for its reliability, but the glow system requires a properly functioning timer to ensure reliable starting, particularly in colder climates or during winter operations. When the glow timer fails, the excavator may experience hard starting, excessive white smoke on start-up, or may not start at all in cold weather.
How the Glow Plug Timer Works
The glow timer system on the Isuzu 4LE2 engine operates as follows :
Preheating Cycle
When the ignition switch is turned to the “ON” position, the glow timer sends a signal to the glow relay (terminal 58). The glow relay then closes, supplying battery voltage to the glow plugs. The timer also illuminates the glow indicator lamp on the dashboard to inform the operator that preheating is in progress.
Automatic Duration Control
The glow timer uses a thermistor to sense engine temperature. Based on the temperature reading, the timer automatically determines the optimal preheating duration:
-
Cold ambient temperatures: Longer preheating time (typically 5-15 seconds)
-
Warm ambient temperatures: Shorter preheating time (typically 1-3 seconds)
-
Hot engine: Minimal or no preheating required
Indicator Lamp Control
The glow timer controls the glow indicator lamp in the operator’s cab. The lamp remains illuminated during the preheating cycle and turns off when preheating is complete, signaling the operator that the engine is ready to start .
Afterglow Function
Some glow timer systems also provide an “afterglow” function, where the timer continues to supply reduced current to the glow plugs for a short period after the engine starts. This helps reduce white smoke and ensures smooth engine operation during the initial warm-up phase.
Key Features
-
OEM Specification Compliance: Manufactured to meet the exact timing and control specifications required by Isuzu for the 4LE2 engine, ensuring proper integration with the glow relay and indicator lamp circuits.
-
Thermistor-Based Temperature Sensing: Utilizes an internal thermistor to automatically adjust preheating duration based on ambient and engine temperature.
-
Automatic Preheating Control: Energizes the glow relay for the correct duration based on temperature conditions, eliminating the need for manual glow control.
-
Indicator Lamp Control: Properly controls the dashboard glow indicator lamp, providing clear operator feedback on preheating status .
-
Durable Electronics: Constructed with high-quality electronic components rated for the vibration, temperature extremes, and moisture common in excavator operating environments.
-
Plug-and-Play Fitment: Direct replacement design with matching connector configuration for straightforward installation.
-
Relay Compatibility: Designed to work with the standard glow relay found on Isuzu 4LE2 engine systems .
System Components
The VI8980305730 glow timer works with several related components:
Signs Your Glow Timer Needs Replacement
The glow timer can fail due to electrical issues, internal component failure, or wiring problems. Replace your VI8980305730 glow timer if you observe:
-
Hard Starting in Cold Weather: The engine cranks normally but takes excessive time to start when cold, or will not start at all without multiple preheating cycles.
-
Glow Indicator Lamp Does Not Illuminate: The dashboard glow lamp fails to light when the ignition is turned on, indicating the timer is not initiating the preheating cycle.
-
Glow Indicator Lamp Stays On Continuously: The glow lamp remains illuminated indefinitely after the ignition is turned on, indicating a stuck or faulty timer.
-
Glow Indicator Lamp Cycles Erratically: The glow lamp turns on and off rapidly or at unexpected intervals, indicating internal timer failure.
-
Excessive White Smoke on Start-Up: The engine produces significant white smoke when starting, indicating incomplete combustion due to insufficient preheating.
-
Premature Glow Plug Failure: Glow plugs burning out frequently may indicate a timer that is supplying current for too long or at incorrect voltage.
-
No Click from Glow Relay: The glow relay does not click when the ignition is turned on, indicating the timer is not energizing the relay.
-
Battery Drain: The battery discharges overnight or between uses, potentially due to a timer that fails to turn off the glow relay.
Benefits
Why choose our VI8980305740 Glow Plug Timer for your Kobelco SK75-8?
-
Restores Reliable Cold Starting: A functioning glow timer ensures proper preheating duration for reliable engine starting in all weather conditions.
-
Reduces Starter Motor Wear: Proper glow plug operation reduces the cranking time required to start the engine, extending starter motor life.
-
Prevents Excessive White Smoke: Correct preheating duration ensures complete combustion on start-up, eliminating embarrassing and polluting white smoke.
-
Protects Glow Plugs: Proper timing control prevents glow plug burnout by ensuring current is not applied for excessive duration.
-
Provides Operator Confidence: A properly functioning glow indicator lamp gives operators clear feedback on when the engine is ready to start.
-
Essential for Winter Operation: In cold climates, a working glow system is essential for reliable daily operation.
-
OEM-Quality Assurance: Manufactured to meet original equipment standards for reliable electronic performance.
-
Cost-Effective Repair: Replacing a failed glow timer is significantly less expensive than repeated starter motor replacements or cold-start related engine damage.
Diagnostic Guide
Testing Glow Timer Operation
-
Visual Check: Turn the ignition switch to “ON” and observe the glow indicator lamp. It should illuminate for a few seconds and then turn off.
-
Listen for Relay Click: When the ignition is turned on, you should hear an audible click from the glow relay when the timer energizes it, and another click when it de-energizes.
-
Check Glow Plug Voltage: Using a voltmeter, check for battery voltage at the glow plug bus bar during the preheating cycle.
-
Temperature Sensitivity: The preheating duration should be longer when the engine is cold and shorter when warm. If duration does not change with temperature, the timer’s thermistor may be faulty.
Common Failure Modes
Installation Tips
-
Professional Installation Recommended: While glow timer replacement is relatively straightforward, proper diagnosis of the entire glow system is recommended. Professional installation by qualified technicians is advised.
-
Disconnect Battery: Always disconnect the battery negative terminal before working on electrical components.
-
Verify Power Supply: Before assuming timer failure, verify that the timer is receiving proper voltage and ground connections.
-
Check Glow Relay: Test the glow relay separately. A failed relay can mimic a failed timer.
-
Inspect Wiring Harness: Check the harness connector for corrosion, bent pins, or damage before connecting the new timer.
-
Test After Installation: After installation, turn the ignition on and verify the glow lamp illuminates for the correct duration and that the glow relay clicks.
-
Clear Fault Codes: If the machine has stored glow system-related fault codes, clear them after installation.
Why Choose Our VI8980305730 4LE2 Glow Plug Timer?
We understand that the Isuzu 4LE2 engine in your Kobelco SK75-8 excavator requires reliable cold-start performance to keep your operations running, especially during winter months or in cold climates. The glow timer is a small but critical component that directly affects starting reliability, smoke emissions, and starter motor life.
Our VI8980305730 4LE2 Glow Plug Timer is manufactured to strict quality standards, ensuring proper timing characteristics and reliable performance. Whether you are troubleshooting hard starting issues, addressing excessive white smoke, or performing preventative maintenance on your fleet, this direct-fit glow timer provides the reliable cold-start performance your Isuzu 4LE2 engine requires.
Technical Specifications
Order your VI8980305730 4LE2 Glow Plug Timer today and restore reliable cold-start performance to your Kobelco SK75-8 excavator. In stock and ready for immediate worldwide shipping.
